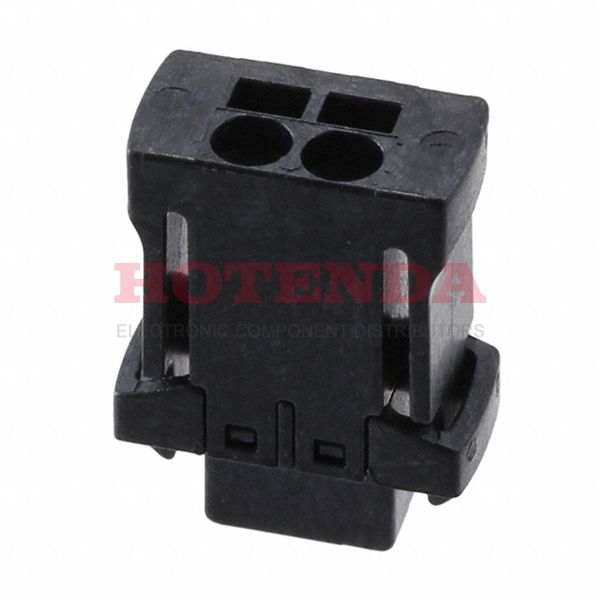

14310213101000

14310213101000

14310213101000

HARTING

14310213101000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from HARTING stock available on our website

SOT-23

14310213101000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialCopper Alloy
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Material Glass fibre, Polymer
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature-40°C~125°C
PackagingBulk
Series har-flexicon®
Feature Latch Lock
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Color Black
Number of Rows 1
Gender Receptacle
Voltage - Rated 160V
Subcategory Headers and Edge Type Connectors
Pitch 0.100 2.54mm
Total Number of Contacts 2
Orientation Vertical
Depth 14.2mm
Insulation Height 0.193 4.90mm
Current Rating7.3A
Reference Standard UL
Termination Style Screwless - Spring Cage, Tension Clamp
Reliability COMMERCIAL
Contact Style SQ PIN-SKT
Voltage 160V
Polarization Key POLARIZED HOUSING
Number of Levels 1
Current 6A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Contact Pattern RECTANGULAR
Contact Mating Finish Tin
Wire Gauge or Range - AWG 20-26 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-0.5mm2
Wire Strip Length 6mm
Number of Positions Per Level 2
Length 10.38mm
Width 4.9mm
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:10470 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.918326$0.918326
10$0.866345$8.66345
100$0.817307$81.7307
500$0.771044$385.522
1000$0.727400$727.4

14310213101000 Product Details

14310213101000 Overview


It's mounted Free Hanging (In-Line).A Bulk case is used for packaging.There is a product in the har-flexicon? Series.Its Latch Lock feature renders it more powerful in many ways.You've got Free Hanging, Panel mounted on the part.Devices operate at -40°C~125°C operating temperatures.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

14310213101000 Features


har-flexicon? series

14310213101000 Applications


There are a lot of HARTING 14310213101000 Terminal Blocks applications.

  • Embedded systems
  • Blowers
  • LED municipal outdoor and street lighting
  • Communication
  • Measuring & Control Technology
  • Datacom
  • Telecommunications
  • Military Technology
  • Electrical substations
  • Automotive Electronics
