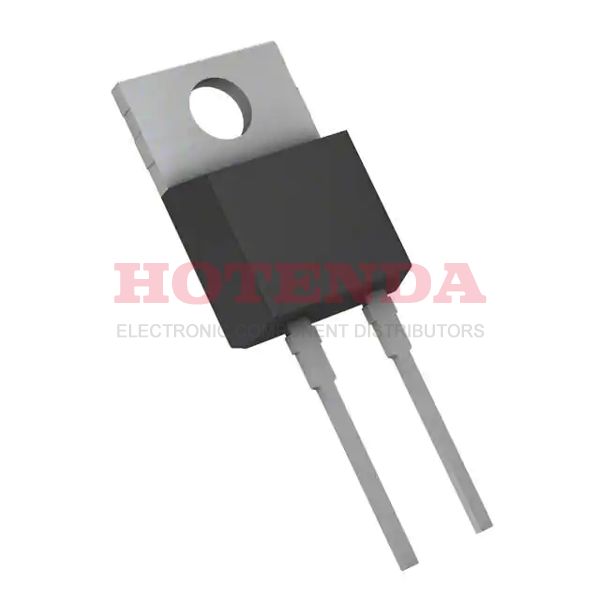

IDH08SG60CXKSA1

Name: IDH08SG60CXKSA1
Brand: Infineon Technologies
SKU: IDH08SG60CXKSA1
Availability: InStock

new-10%

Manufacturer part number:IDH08SG60CXKSA1

Manufacturer:Infineon Technologies

Description:IDH08SG60CXKSA1 datasheet pdf and Diodes - Rectifiers - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IDH08SG60CXKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-2
Surface Mount	NO
Packaging	Tube
Published	2012
Series	CoolSiC™+
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSFM-T2
Qualification Status	Not Qualified
Operating Temperature (Max)	175°C
Number of Elements	1
Configuration	SINGLE
Speed	No Recovery Time > 500mA (Io)
Diode Type	Silicon Carbide Schottky
Current - Reverse Leakage @ Vr	70μA @ 600V
Voltage - Forward (Vf) (Max) @ If	2.1V @ 8A
Case Connection	CATHODE
Operating Temperature - Junction	-55°C~175°C
Output Current-Max	8A
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	8A DC
Number of Phases	1
Reverse Recovery Time	0ns
Rep Pk Reverse Voltage-Max	600V
JEDEC-95 Code	TO-220AC
Capacitance @ Vr, F	240pF @ 1V 1MHz
Non-rep Pk Forward Current-Max	36A
RoHS Status	ROHS3 Compliant
