Name: IRL6342PBF
Brand: Infineon Technologies
SKU: IRL6342PBF
Availability: InStock

new-10%

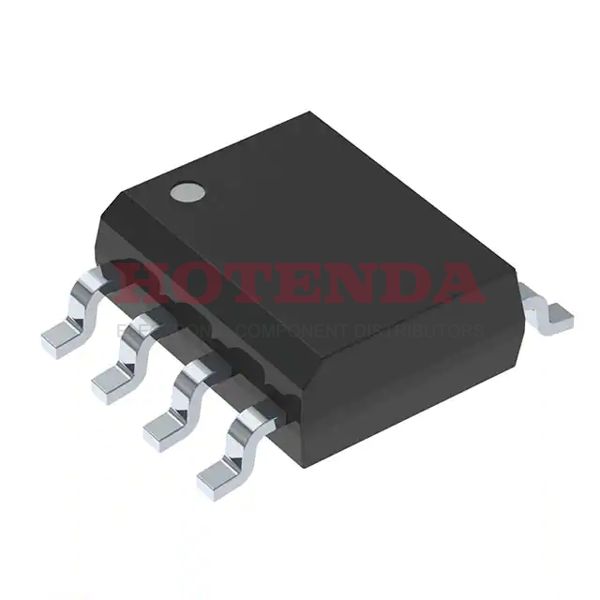

IRL6342PBF

Manufacturer part number:IRL6342PBF

Manufacturer:Infineon Technologies

Description:IRL6342PBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IRL6342PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2003
Series	HEXFET®
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Additional Feature	HIGH RELIABILITY
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Elements	1
Power Dissipation-Max	2.5W Ta
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	2.5W
Turn On Delay Time	6 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	14.6m Ω @ 9.9A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 10μA
Input Capacitance (Ciss) (Max) @ Vds	1025pF @ 25V
Current - Continuous Drain (Id) @ 25°C	9.9A Ta
Gate Charge (Qg) (Max) @ Vgs	11nC @ 4.5V
Rise Time	12ns
Drive Voltage (Max Rds On,Min Rds On)	2.5V 4.5V
Vgs (Max)	±12V
Fall Time (Typ)	14 ns
Turn-Off Delay Time	33 ns
Continuous Drain Current (ID)	9.9A
Threshold Voltage	1.1V
Gate to Source Voltage (Vgs)	12V
Drain to Source Breakdown Voltage	30V
Pulsed Drain Current-Max (IDM)	79A
Recovery Time	20 ns
Max Junction Temperature (Tj)	150°C
Nominal Vgs	1.1 V
Height	1.75mm
Length	5mm
Width	4mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

IRL6342PBF Product Details

IRL6342PBF Description

IRL6342PBF is a type of HEXFET? power MOSFET developed by Infineon Technologies for extremely low RDS (on). It is supplied in the industry-standard SO-8 package, thus it features multi-vendor compatibility. It complies with MSL1 and consumer qualifications, increased reliability is provided. Power MOSFET IRL6342PBF, being environmentally friendly, is well suited for battery-operated DC motor inverter MOSFET, and system/load switch.
