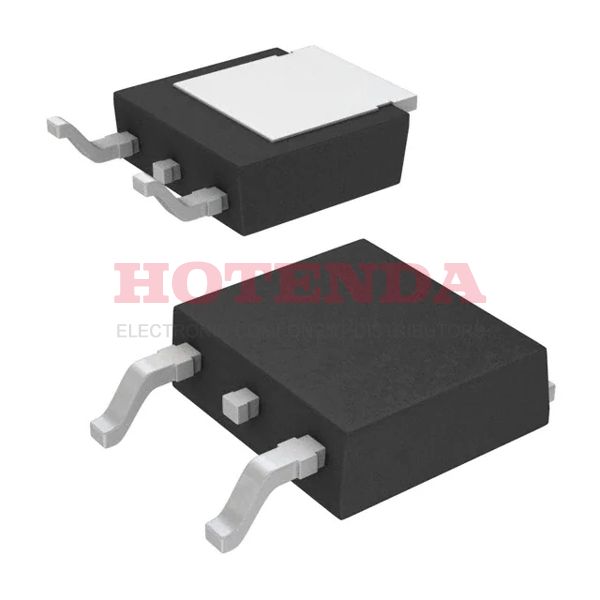

Name: IRLR8726PBF
Brand: Infineon Technologies
SKU: IRLR8726PBF
Availability: InStock

new-10%

IRLR8726PBF

Manufacturer part number:IRLR8726PBF

Manufacturer:Infineon Technologies

Description:IRLR8726PBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IRLR8726PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2004
Series	HEXFET®
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Resistance	5.8MOhm
Technology	MOSFET (Metal Oxide)
Power Dissipation-Max	75W Tc
Element Configuration	Single
Power Dissipation	75W
Turn On Delay Time	12 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	5.8m Ω @ 25A, 10V
Vgs(th) (Max) @ Id	2.35V @ 50μA
Input Capacitance (Ciss) (Max) @ Vds	2150pF @ 15V
Current - Continuous Drain (Id) @ 25°C	86A Tc
Gate Charge (Qg) (Max) @ Vgs	23nC @ 4.5V
Rise Time	49ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	16 ns
Turn-Off Delay Time	15 ns
Continuous Drain Current (ID)	86A
Threshold Voltage	1.8V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	30V
Dual Supply Voltage	30V
Recovery Time	36 ns
Nominal Vgs	1.8 V
Height	2.3876mm
Length	6.7056mm
Width	6.22mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

IRLR8726PBF Product Details

IRLR8726PBF Description

IRLR8726PBF belongs to the family of HEXFET? power MOSFETs that are manufactured by Infineon Technologies. It is able to provide extremely low RDS (on), ultra-low gate impedance, and fully characterized avalanche voltage and current. All of these enable the power MOSFET IRLR8729PBF to be efficient and reliable in various applications.

IRLR8726PBF Features

Extremely low RDS (on)
Ultra-low gate impedance
Available in the D-Pak package
Full characterized avalanche voltage and current

IRLR8726PBF Applications

High-frequency synchronous buck converters for computer processor power
High-frequency isolated DC-DC converters with synchronous rectification for telecom and industrial use
