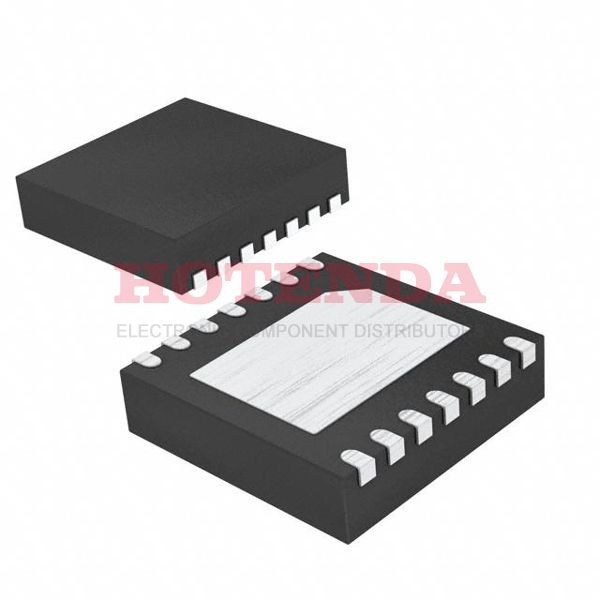

DS2741N+T Overview
This package corresponds to 14-WFDFN Exposed Pad. POWER SUPPLY SUPPORT CIRCUIT is the analog IC used by this power management IC. It is possible to access 1 channels. The smart tools battery has 14 pins in total. A Tape & Reel (TR) case holds it. Mount this electronic part using Surface Mount. It is recommended that this electric part's minimum supply voltage not be less than 2.5V volts. There is a electronic part mounted in the way of Surface Mount. 4.5V voltage greater than 4.5V volts should be supplied to this electronic battery. In addition to Battery Monitor functions, it can deliver other functions as well. When a electronic part is operated at -20°C~70°C TA, its performance will be optimal. This electronic part includes a Lithium-Ion chemistry battery. There is a DS2741 family at the core of it. Ensure that the maximum supply current (Isup) is below 0.09mA.
DS2741N+T Features
Available in 14-WFDFN Exposed Pad Package
with 14 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
DS2741N+T Applications
There are a lot of Maxim Integrated
DS2741N+T Battery Management ICs applications.
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
