ICL7642BCWE+T Overview

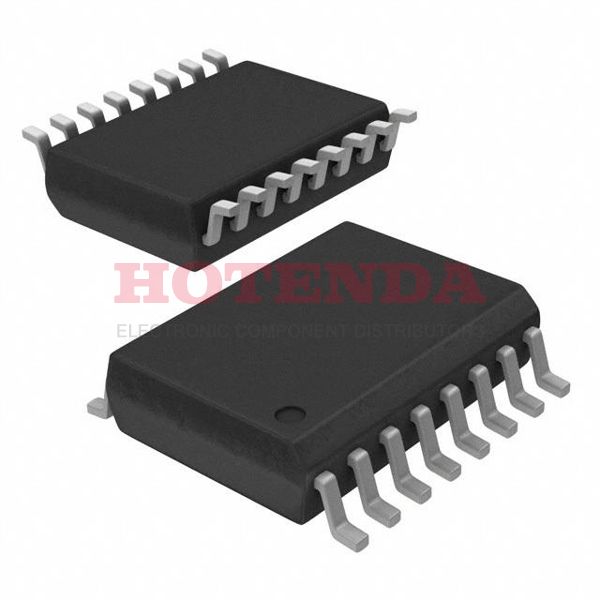

There is a 16-SOIC (0.295, 7.50mm Width) case in which the instrumentation amplifier is packaged. Buffer amps of this type are called General Purpose-types. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations is approaching the 16 mark. The total number of pins on linear amplifier is 16. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. For this electronic part, it is recommended that you mount it with type Surface Mount. It is important to note that this linear amplifier works well at a temperature of 0°C~70°C when it comes to operating temperatureA linear amplifier like this has 4 circuits on it. A benefit of this op amp ic is that it outputs Rail-to-Rail signals, which is one of the many advantages it has to offer. For the packing of the instrumentation amplifier, TAPE AND REEL is adopted. We recommend that you use this electronic part with an 10μA supply in order to get the best performance from it. This operational amplifier can conduct a voltage gain of up to 10000 at a minimum.
ICL7642BCWE+T Features
16 Pins
supply voltage of 5V
Output Type: Rail-to-Rail
ICL7642BCWE+T Applications
There are a lot of Maxim Integrated
ICL7642BCWE+T Instrumentational OP Amps applications.
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
