Name: MAX6726KATGD3+T
Brand: Maxim Integrated
SKU: MAX6726KATGD3+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Number of Pins	8
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2006
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Type	Multi-Voltage Supervisor
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory	Power Management Circuits
Max Power Dissipation	714mW
Technology	BICMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Base Part Number	MAX6726
Output	Push-Pull, Push-Pull
Pin Count	8
Power Supplies	1/5V
Number of Channels	3
Max Supply Voltage	5.5V
Min Supply Voltage	800mV
Operating Supply Current	15μA
Adjustable Threshold	YES
Watchdog Timer	Yes
Reset	Active High/Active Low
Voltage - Threshold	1.11V 3.075V Adj
Number of Voltages Monitored	3
Reset Timeout	140ms Minimum
Undervoltage Threshold	1.08V
Overvoltage Threshold	1.14V
Height Seated (Max)	1.45mm
Length	2.9mm
Width	1.625mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

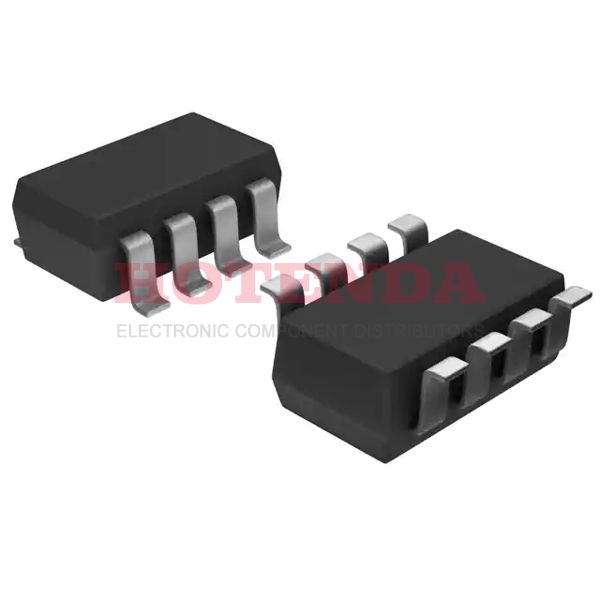

MAX6726KATGD3+T Product Details

MAX6726KATGD3+T Overview

This power management consists of 8 mounting terminals on which it can be mounted. A Tape & Reel (TR) package is used to package the power management. There are 1 functions included in this PMIC so that you can refer to them. This power management is made up of 3 channels which are available in a series format. In this PMIC, you can find SOT-23-8 functions for your reference. There are a lot of similarities between this IC management and other Multi-Voltage Supervisor products. As specified in the package specification, the peak reflow temperature of the package is set at 260. IC management is possible to find a succession of 3 voltages that have been checked. Surface Mount mounts IC management. As a subcategory, this PMIC chip can be categorized as Power Management Circuits. The total number of pins on this power management is 8. 8 pins are on the supervisor. In order for this IC power to function, the supply voltage (Vsup) cannot be less than 800mV. The supply voltage (Vsup) should not exceed 5.5V volts in this IC power. In this case, Surface Mount is the recommended mounting type. The temperature of the supervisors should be set to this range: -40°C~85°C TA. As a result of this supervisor's operation, the output voltage is Push-Pull, Push-Pull. Supplied with a operating current of 15μA, this PMIC is capable of fully function as specified. A similar IC managements number of the manufacturer can always be found by using MAX6726, the base power ics number. A power supply of 1/5V watts is required for the operation of this power management.
