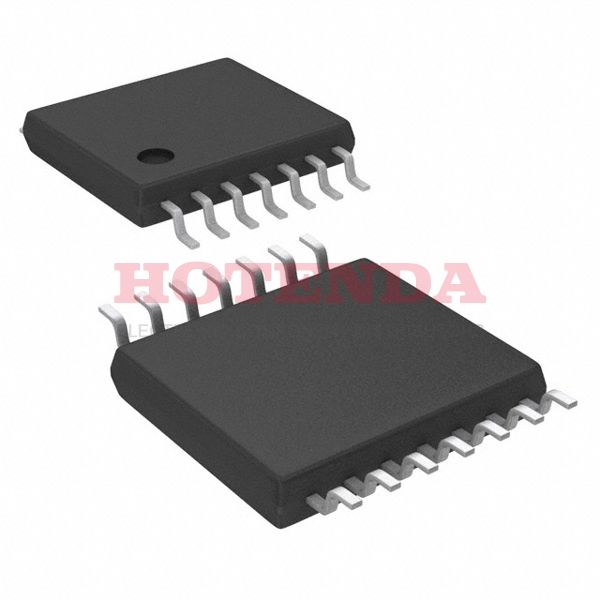

MAX996EUD-T Overview
A convenient packaging is provided in the form of 14-TSSOP (0.173, 4.40mm Width) .The comparator has a type CMOS, Open-Drain, Rail-to-Rail, TTL output.As a result, it is designed with Tape & Reel (TR) package.14 terminals are found on the comparator.Electronic comparator is a component of the Comparator family.With a voltage of 2.7V supplied, the comparator is capable of performing a wide range of demanding tasks.A comparator of this type is typically of type General Purpose .The total number of elements is 4 .There are 14 pins on this board.Electronic comparator is recommended to mount the device using type Surface Mount .As a precaution, it is recommended to set the operating temperature to -40°C~85°C to prevent malfunctions.You can search MAX996 if you are looking for more pin-to-pin solutions.The device can be powered by +-1.5/+-2.5/3/5V power supplies.The maximum current that can be supplied to this part is 0.096mA .
MAX996EUD-T Features
CMOS, Open-Drain, Rail-to-Rail, TTL output capability
General Purpose IC
Employing 4 elements
Operates under -40°C~85°C
MAX996EUD-T Applications
There are a lot of Maxim Integrated
MAX996EUD-T linear comparators applications.
- General-Purpose Portable Devices
- General-Purpose, Low-Voltage Applications
- Self-diagnostics
- Lithium ion battery monitoring
- Battery management and protection
- Current and voltage sensing
- Analog front end
- Power management
- Point of load regulators
- DC/DC and AC/DC power supplies
