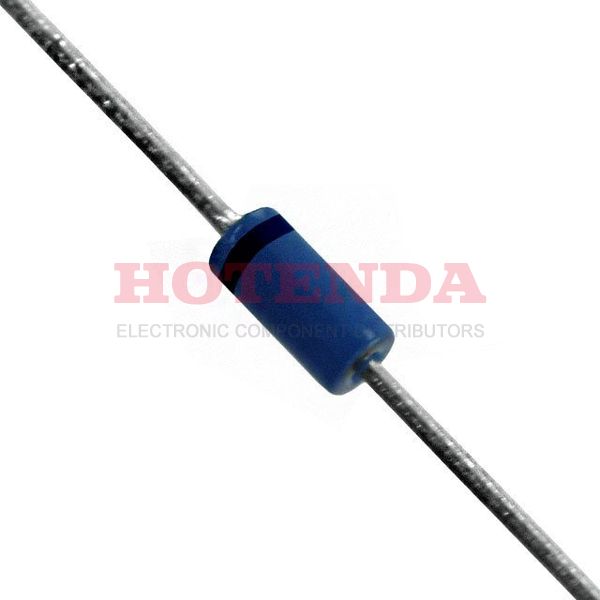

1N4448-TP

Name: 1N4448-TP
Brand: Micro Commercial Co
SKU: 1N4448-TP
Availability: InStock

new-10%

Manufacturer part number:1N4448-TP

Manufacturer:Micro Commercial Co

Description:1N4448-TP datasheet pdf and Diodes - Rectifiers - Single product details from Micro Commercial Co stock available on our website

Case Package:SOT-23

Datasheet:1N4448-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Surface Mount	NO
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	1996
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	METALLURGICALLY BONDED
HTS Code	8541.10.00.70
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	1N4448
Pin Count	2
JESD-30 Code	O-XALF-W2
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Power Dissipation-Max	0.5W
Speed	Small Signal =< 200mA (Io), Any Speed
Diode Type	Standard
Current - Reverse Leakage @ Vr	5μA @ 75V
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Case Connection	ISOLATED
Operating Temperature - Junction	-50°C~150°C
Output Current-Max	0.15A
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	150mA
Reverse Recovery Time	4ns
Rep Pk Reverse Voltage-Max	100V
RoHS Status	RoHS Compliant
