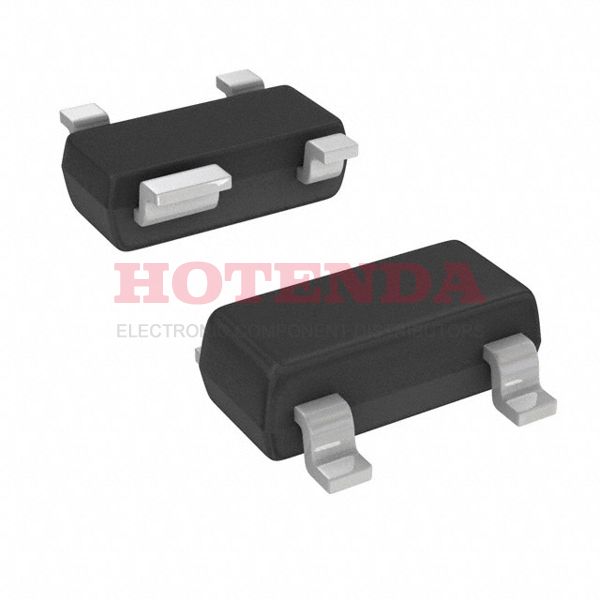

Name: TCM812LERCTR
Brand: Microchip Technology
SKU: TCM812LERCTR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Number of Pins	4
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2002
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Type	Simple Reset/Power-On Reset
Terminal Finish	Matte Tin (Sn)
Subcategory	Power Management Circuits
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	5V
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	TCM812L
Output	Push-Pull, Totem Pole
Pin Count	4
Power Supplies	5V
Number of Channels	1
Max Supply Voltage	5.5V
Min Supply Voltage	1.1V
Operating Supply Current	6μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active High
Voltage - Threshold	4.63V
Number of Voltages Monitored	1
Reset Timeout	140ms Minimum
Min Reset Threshold Voltage	4.54V
Max Reset Threshold Voltage	4.72V
Threshold Voltage	+4.63V
Undervoltage Threshold	4.54V
Overvoltage Threshold	4.72V
Length	2.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TCM812LERCTR Product Details

TCM812LERCTR Overview

Power management is mounted through 4 terminals. Packaged in a Tape & Reel (TR)-shape, IC management comes with a number of features. For your reference, this IC power includes a list of 1 functions. This power managment ic consists of 1 channels, each of which can be used independently. The purpose of this IC power is to provide you with a reference of TO-253-4, TO-253AA functions. There are many benefits that this IC power shares with other Simple Reset/Power-On Reset products as well. As specified in the package specification, the peak reflow temperature of the package is set at 260. When 5V is applied to the power ic, it conducts. When 1 is applied to the power ic, it conducts. The mount is provided by Surface Mount. As a subcategory, this PMIC chip can be categorized as Power Management Circuits. It has a total of 4 pins that are attached to IC management. This power management system has 4 pins. Normally, the supply voltage (Vsup) for this PMIC should not be lower than 1.1V. The maximum supply voltage (Vsup) is not to exceed 5.5V volts in this IC management. The mounting type of the supervisors is Surface MountThe temperature of the supervisors should be set to this range: -40°C~85°C TA. The output voltage of this power managment ic during operation is Push-Pull, Totem Pole. There is a 6μA supply current present in the power management. To find similar IC managements from the manufacturer, you can always search by TCM812L. It is necessary to have 5V volts of power in order for this voltage supervisor to operate.
