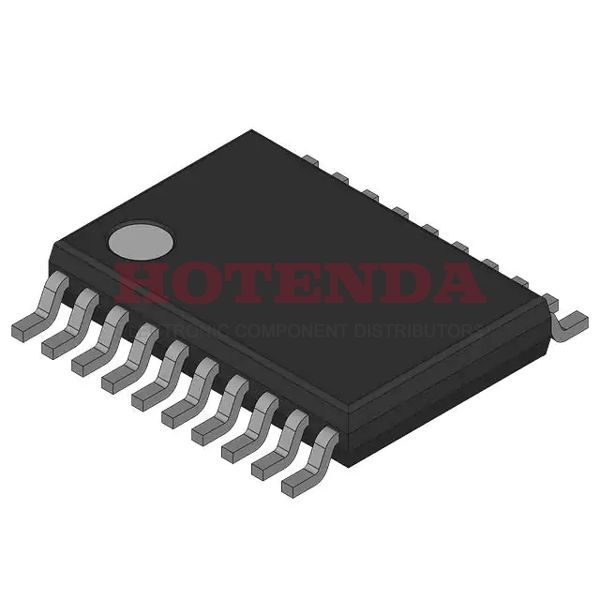

74LCX574MTCX Overview
The item is packaged in 20-TSSOP (0.173, 4.40mm Width)cases. There is an embedded version in the package Tape & Reel (TR). The output it is configured with uses Tri-State, Non-Inverted. This trigger is configured to use Positive Edge. In this case, the electronic component is mounted in the way of Surface Mount. Powered by a 2V~3.6Vvolt supply, it operates as follows. Currently, the operating temperature is -40°C~85°C TA. It is an electronic flip flop with the type D-Type. It is a type of FPGA belonging to the 74LCX series. You should not exceed 150MHzin the output frequency of the device. The element count is 1 . It is a member of the 74LCX574 family. Input capacitance of this device is 7pF farads. This electronic part is mounted in the way of Surface Mount. This board is designed with 20pins on it. A Positive Edgeclock edge trigger is used in this device. The superior flexibility of this circuit is achieved by using 8 circuits. Featuring the maximum design flexibility, it has an output current of 24mA . In terms of quiescent current, it consumes 10μA .
74LCX574MTCX Features
Tape & Reel (TR) package
74LCX series
20 pins
74LCX574MTCX Applications
There are a lot of ON Semiconductor 74LCX574MTCX Flip Flops applications.
- Frequency division
- Asynchronous counter
- Registers
- Buffered Clock
- ATE
- Circuit Design
- ESCC
- Single Up Count-Control Line
- Modulo – n – counter
- Data transfer
