Name: CS8122YTVA5
Brand: ON Semiconductor
SKU: CS8122YTVA5
Price: 2.67000 USD
Availability: InStock

new-10%

CS8122YTVA5

Manufacturer part number:CS8122YTVA5

Manufacturer:ON Semiconductor

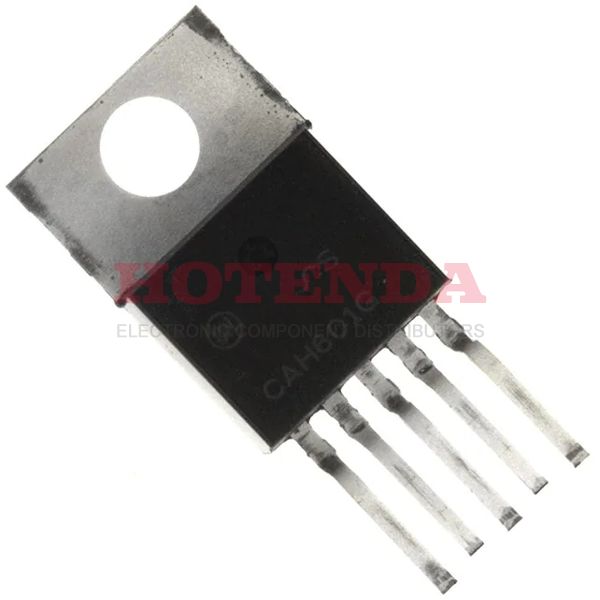

Description:Reset Fixed CS8122 PMIC 5 TO-220-5 Formed Leads

Case Package:SOT-23

Datasheet:CS8122YTVA5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-5 Formed Leads
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2004
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn80Pb20)
Terminal Position	ZIG-ZAG
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	CS8122
Pin Count	5
JESD-30 Code	R-PZFM-T5
Current - Supply (Max)	100mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	5V
Output Type	Fixed
Output Configuration	Positive
Control Features	Reset
Output Voltage 1	5V
Number of Regulators	1
Min Input Voltage	-500mV
Protection Features	Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Current - Quiescent (Iq)	70mA
Voltage Dropout (Max)	0.6V @ 500mA
PSRR	75dB (120Hz)
Dropout Voltage	350mV
Dropout Voltage1-Nom	0.35V
Voltage Tolerance-Max	2%
Output Current1-Max	0.75A
Min Current Limit	750mA
Input Voltage Absolute-Max	26V
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

CS8122YTVA5 Product Details

CS8122YTVA5 Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a TO-220-5 Formed Leads package. There are 5 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 5 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. FYI, the basic part number for this IC regulator is CS8122.
