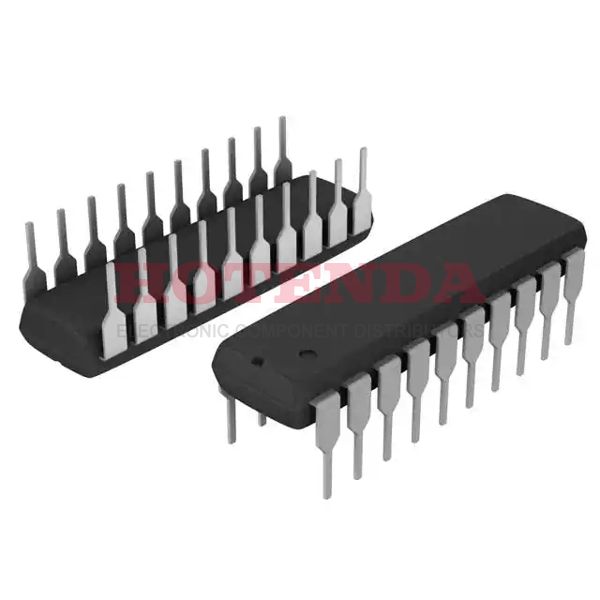

DM74ALS574AN Overview
20-DIP (0.300, 7.62mm)is the packaging method. The package Tubecontains it. In the configuration, Tri-State, Non-Invertedis used as the output. The trigger it is configured with uses Positive Edge. It is mounted in the way of Through Hole. Powered by a 4.5V~5.5Vvolt supply, it operates as follows. Currently, the operating temperature is 0°C~70°C TA. A flip flop of this type is classified as a D-Type. The 74ALSseries comprises this type of FPGA. Its output frequency should not exceed 35MHz. The element count is 1 . As a result, it consumes 18mA quiescent current and is not affected by external forces. The 74ALS574 family contains this object.
DM74ALS574AN Features
Tube package
74ALS series
DM74ALS574AN Applications
There are a lot of ON Semiconductor DM74ALS574AN Flip Flops applications.
- Storage registers
- Parallel data storage
- Set-reset capability
- Storage Registers
- Single Up Count-Control Line
- Synchronous counter
- Test & Measurement
- Balanced Propagation Delays
- Reduced system switching noise
- Cold spare funcion
