DM74LS574N Overview

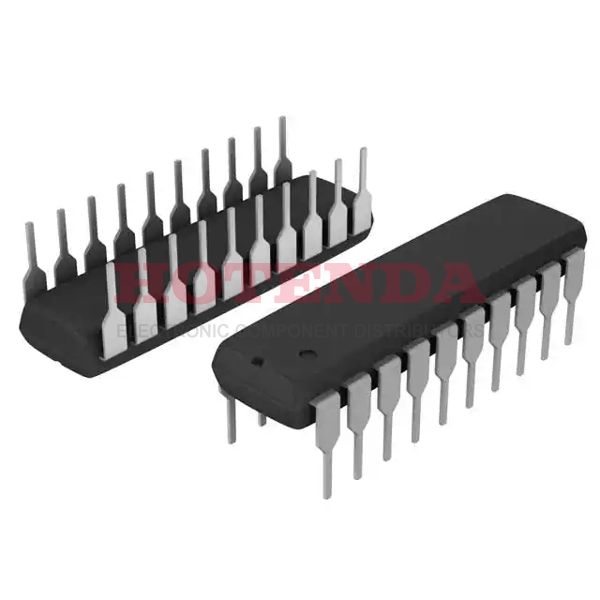

The item is packaged in 20-DIP (0.300, 7.62mm)cases. Package Tubeembeds it. Tri-State, Non-Invertedis the output configured for it. It is configured with a trigger that uses a value of Positive Edge. This electronic part is mounted in the way of Through Hole. A voltage of 4.75V~5.25Vis required for its operation. 0°C~70°C TAis the operating temperature. This D latch has the type D-Type. In FPGA terms, D flip flop is a type of 74LSseries FPGA. Its output frequency should not exceed 35MHz Hz. In total, it contains 1 elements. The 74LS574 family contains it.
DM74LS574N Features
Tube package
74LS series
DM74LS574N Applications
There are a lot of ON Semiconductor DM74LS574N Flip Flops applications.
- Storage Registers
- Test & Measurement
- Bus hold
- Common Clocks
- Balanced 24 mA output drivers
- Frequency Dividers
- Memory
- Single Down Count-Control Line
- Digital electronics systems
- High Performance Logic for test systems
