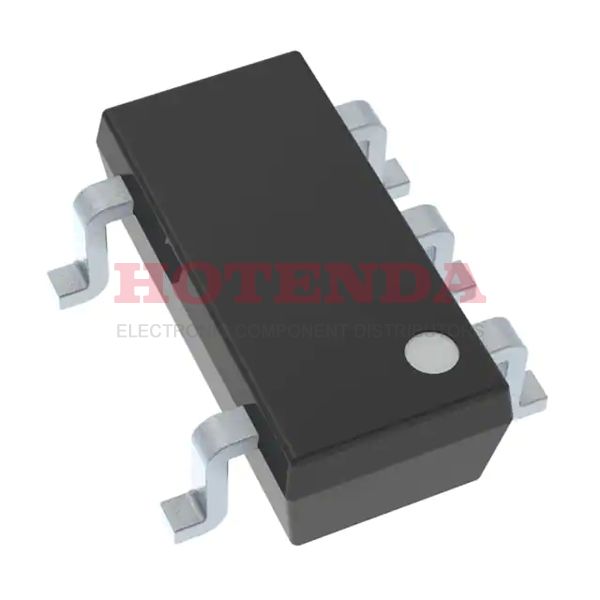

MC74VHC1G03DBVT1G Overview
Shipping overseas is convenient with the part packed in SC-74A, SOT-753. High reliability is provided by advanced packaging method Tape & Reel (TR). Based on the NOR Gate logic principle, it works. A voltage of 2V~5.5V is required for the part to function properly. Increasing operating temperature to around -55°C~125°C. In Surface Mount, the part is mounted. There is - 8mA output current in the high or low states. The 74VHC series contains it. Try searching with 74VHC1G03 if you're looking for device variants. 2 inputs are supported by the part. There are 1 circuits in this device. Standby mode has a maximum current of 1μA. Among its features are Open Drain.
MC74VHC1G03DBVT1G Features
NOR Gate Logic Type
Operating Temperature: -55°C~125°C
MC74VHC1G03DBVT1G Applications
There are a lot of ON Semiconductor
MC74VHC1G03DBVT1G Gates and Inverters applications.
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
