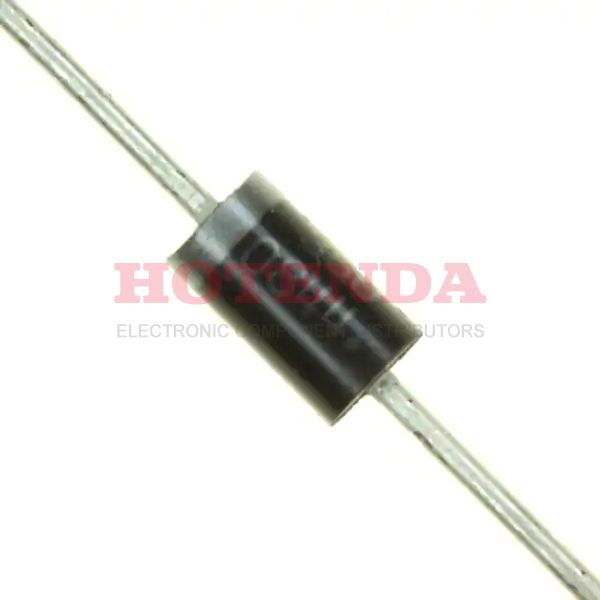

MR856RLG

Name: MR856RLG
Brand: ON Semiconductor
SKU: MR856RLG
Availability: InStock

new-10%

Manufacturer part number:MR856RLG

Manufacturer:ON Semiconductor

Description:MR856RLG datasheet pdf and Diodes - Rectifiers - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:MR856RLG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Surface Mount	NO
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2000
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Additional Feature	FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	MR856
Pin Count	2
JESD-30 Code	O-PALF-W2
Qualification Status	Not Qualified
Operating Temperature (Max)	125°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 600V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 3A
Case Connection	ISOLATED
Operating Temperature - Junction	-65°C~125°C
Output Current-Max	3A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	3A
Number of Phases	1
Reverse Recovery Time	300ns
Rep Pk Reverse Voltage-Max	600V
JEDEC-95 Code	DO-201AD
Non-rep Pk Forward Current-Max	100A
RoHS Status	ROHS3 Compliant
