Name: MTW32N20EG
Brand: ON Semiconductor
SKU: MTW32N20EG
Availability: InStock

new-10%

MTW32N20EG

Manufacturer part number:MTW32N20EG

Manufacturer:ON Semiconductor

Description:MTW32N20EG datasheet pdf and Transistors - FETs, MOSFETs - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:MTW32N20EG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	LAST SHIPMENTS (Last Updated: 5 days ago)
Mount	Through Hole
Mounting Type	Through Hole

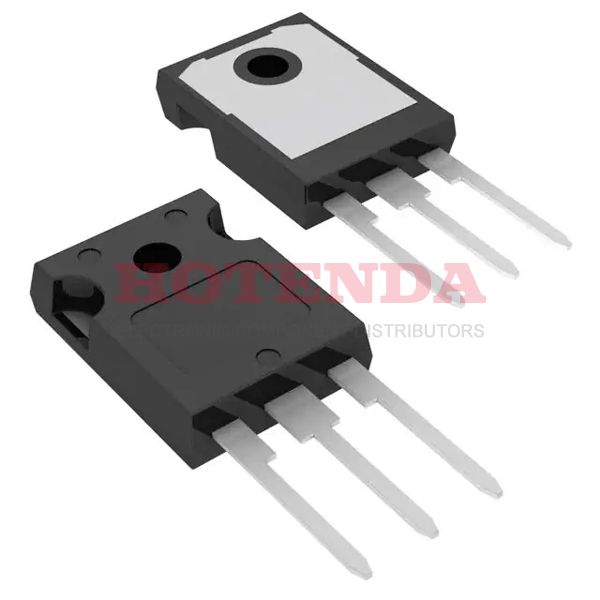

Package / Case	TO-247-3
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2006
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Resistance	75MOhm
Terminal Finish	Tin (Sn)
Additional Feature	AVALANCHE RATED
Subcategory	FET General Purpose Power
Voltage - Rated DC	200V
Technology	MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel)	260
Current Rating	32A
[email protected] Reflow Temperature-Max (s)	40
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Power Dissipation-Max	180W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	180W
Case Connection	DRAIN
Turn On Delay Time	25 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	75m Ω @ 16A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	5000pF @ 25V
Current - Continuous Drain (Id) @ 25°C	32A Tc
Gate Charge (Qg) (Max) @ Vgs	120nC @ 10V
Rise Time	120ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	91 ns
Turn-Off Delay Time	75 ns
Continuous Drain Current (ID)	32A
JEDEC-95 Code	TO-247AE
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	200V
Nominal Vgs	4 V
Height	20.3mm
Length	15.9mm
Width	5.3mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

MTW32N20EG Product Details

MTW32N20EG Description

This advanced Power MOSFET is designed to withstand high energy in the avalanche and commutation modes. The new energy-efficient design also offers a drain?to?source diode with a fast recovery time. Designed for low voltage, high-speed switching applications in power supplies, converters, and PWM motor controls, these devices are particularly well suited for bridge circuits where diode speed and commutating safe operating areas are critical and offer additional safety margin against unexpected voltage transients.
