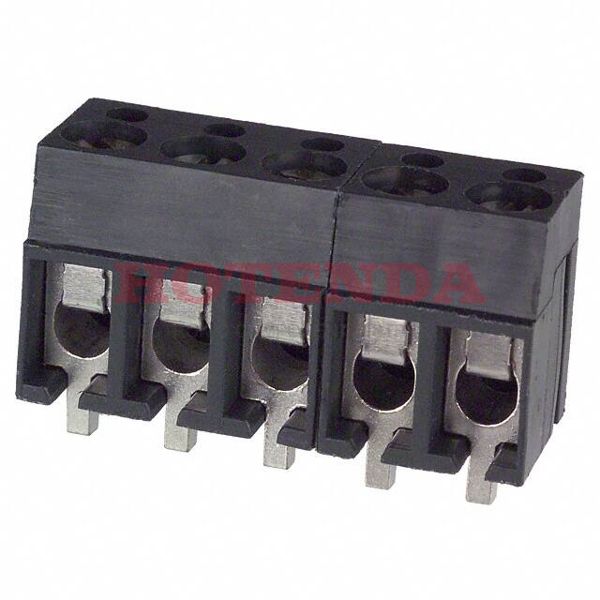

Name: ED104/5DS
Brand: On Shore Technology Inc.
SKU: ED104/5DS
Price: 1.93000 USD
Availability: InStock

new-10%

ED104/5DS

Manufacturer part number:ED104/5DS

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Gray Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED104/DS

Case Package:SOT-23

Datasheet:ED104/5DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED104/DS
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Gray
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Grey
Wire Gauge	14-22 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.8 Nm (7.1 Lb-In)
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Number of Positions Per Level	5
Height	12.5mm
Length	25mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED104/5DS Product Details

ED104/5DS Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ED104/DS Series.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.
