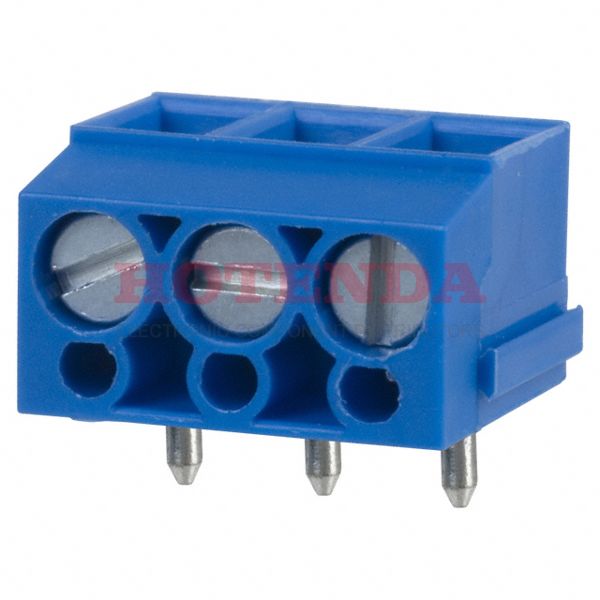

Name: ED105/3DS
Brand: On Shore Technology Inc.
SKU: ED105/3DS
Price: 1.66000 USD
Availability: InStock

new-10%

ED105/3DS

Manufacturer part number:ED105/3DS

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Blue Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED105/DS

Case Package:SOT-23

Datasheet:ED105/3DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	3
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED105/DS
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Blue
Number of Rows	1
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Blue
Wire Gauge	14-22 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	3
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Number of Positions Per Level	3
Height	9mm
Length	15mm
Width	12.5mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED105/3DS Product Details

ED105/3DS Overview

Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the ED105/DS Series, it can be found in this category.It has 3 pins.Temperatures below 105°C are best for using it.There's a minimum temperature of -30°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.The device is operating at -30°C~105°C Operating Temperature.
