Name: ED110/2DS
Brand: On Shore Technology Inc.
SKU: ED110/2DS
Price: 1.11000 USD
Availability: InStock

new-10%

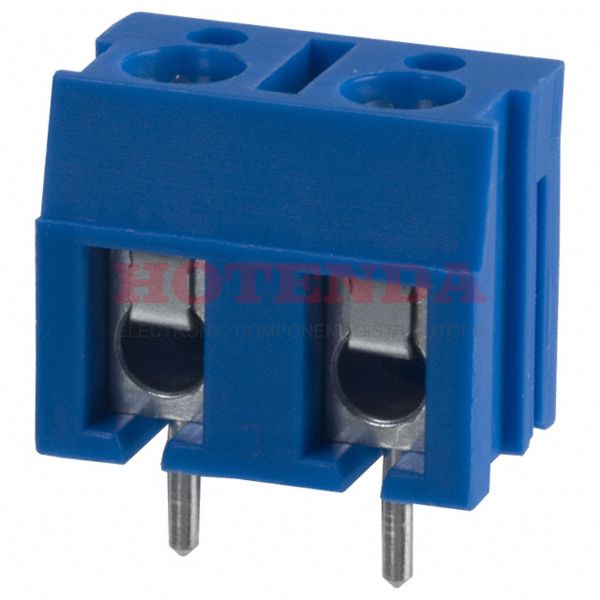

ED110/2DS

Manufacturer part number:ED110/2DS

Manufacturer:On Shore Technology Inc.

Description:0.295 7.50mm Blue Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED110/DS

Case Package:SOT-23

Datasheet:ED110/2DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	2
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED110/DS
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Blue
Number of Rows	1
Pitch	0.295 7.50mm
Lead Pitch	7.5mm
Housing Color	Blue
Wire Gauge	14-22 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	20A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Number of Positions Per Level	2
Height	12.5mm
Length	15mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

ED110/2DS Product Details

ED110/2DS Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the ED110/DS Series.2 pins are present on the device.Use it when the temperature is below 105°C.Temperatures below -30°C are required for this device to operate.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.It operates at an operating temperature of -30°C~105°C.
