Name: ED120/3DS
Brand: On Shore Technology Inc.
SKU: ED120/3DS
Price: 1.17000 USD
Availability: InStock

new-10%

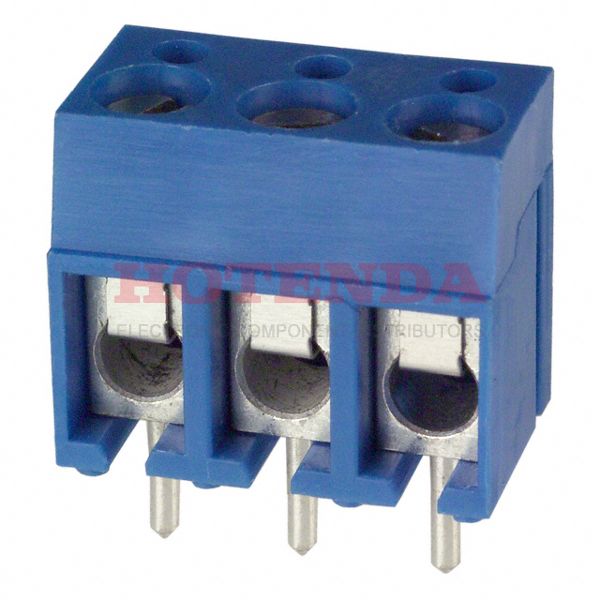

ED120/3DS

Manufacturer part number:ED120/3DS

Manufacturer:On Shore Technology Inc.

Description:0.200 5.08mm Blue Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED120/DS

Case Package:SOT-23

Datasheet:ED120/3DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED120/DS
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Blue
Number of Rows	1
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.200 5.08mm
Lead Pitch	5.08mm
Wire Gauge	14-22 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5 Nm (4.4 Lb-In)
Number of Ways	3
Safety Approval	CUL; UL; VDE
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Number of Positions Per Level	3
Wire Cross Section	2.5 mm2
Height	13mm
Length	15.2mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED120/3DS Product Details

ED120/3DS Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the ED120/DS Series.Among other features are STANDARD: UL 94V-0, PA, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -30°C~105°C.
