Name: 1935857
Brand: Phoenix Contact
SKU: 1935857
Price: 2.61000 USD
Availability: InStock

new-10%

1935857

Manufacturer part number:1935857

Manufacturer:Phoenix Contact

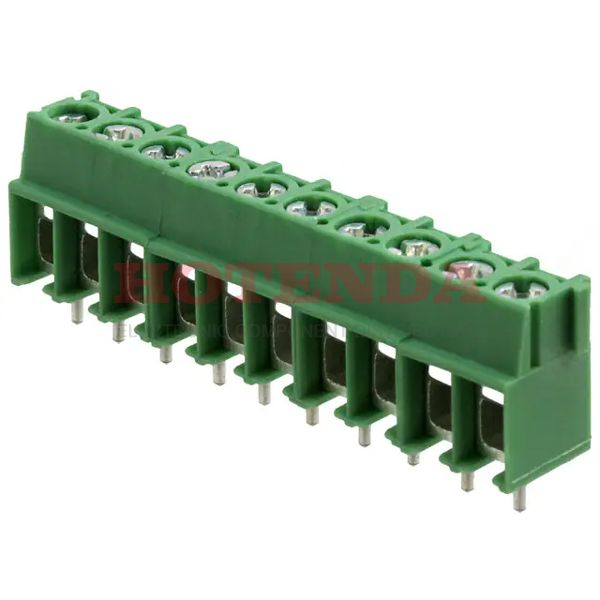

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-20 AWG COMBICON PT

Case Package:SOT-23

Datasheet:1935857 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	12.009992g
Packaging	Bulk
Series	COMBICON PT
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	10
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	9mm
Current Rating	32A
Approval Agency	CB, UL, VDE
Wire Gauge	12-20 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	32A
Number of Levels	1
Current	20A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	10 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.45-0.5 Nm (3.9-4.4 Lb-In)
Number of Ways	10
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	4 mm2
Height	13.5mm
Length	50mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1935857 Product Details

1935857 Overview

Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON PT Series.Furthermore, there are other features such as PA, UL 94V0, to name a few.By Through Hole, the part is mounted.A supply voltage of 250V should not be exceeded by this chip.
