Name: ED3000/2
Brand: On Shore Technology Inc.
SKU: ED3000/2
Price: 1.26000 USD
Availability: InStock

new-10%

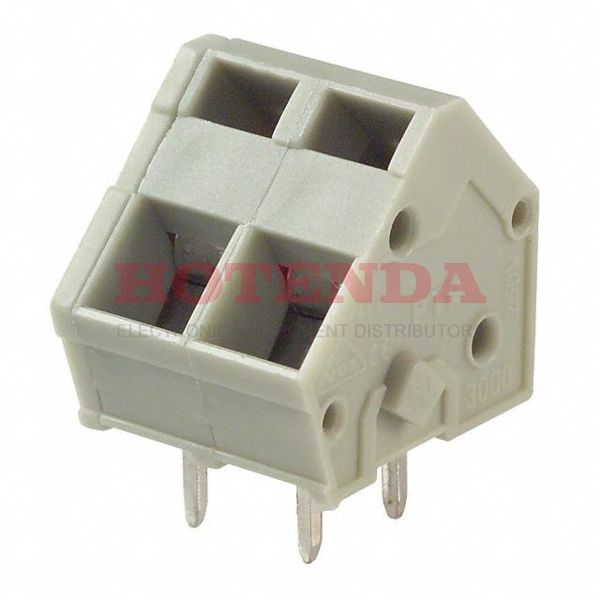

ED3000/2

Manufacturer part number:ED3000/2

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Gray, Slate Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Leg Spring, Push-In Spring 1 Levels 14-28 AWG ED3000

Case Package:SOT-23

Datasheet:ED3000/2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED3000
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Color	Gray, Slate
Number of Rows	1
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Grey
Wire Gauge	14-28 AWG
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	2
Safety Approval	CUL; UL; VDE
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level	2
Height	12.9mm
Length	10mm
Width	14.2mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED3000/2 Product Details

ED3000/2 Overview

Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the ED3000 Series.Furthermore, there are other features such as STANDARD: UL 94V-0, PA, to name a few.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -30°C~105°C.
