Name: ED555/11DS
Brand: On Shore Technology Inc.
SKU: ED555/11DS
Price: 3.54000 USD
Availability: InStock

new-10%

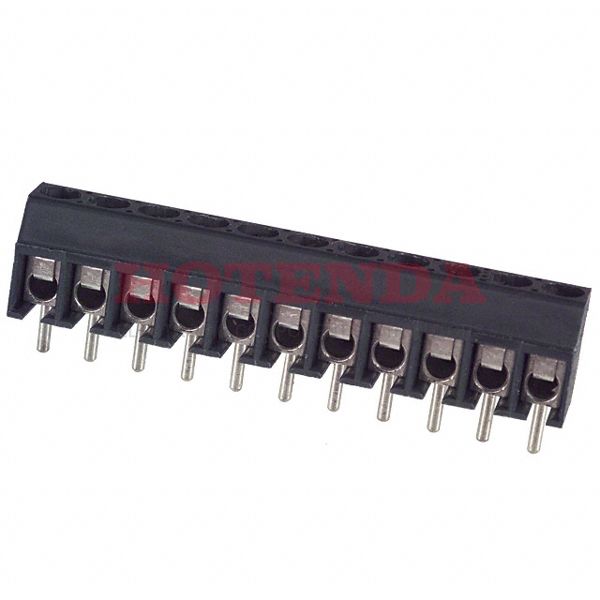

ED555/11DS

Manufacturer part number:ED555/11DS

Manufacturer:On Shore Technology Inc.

Description:0.138 3.50mm Gray Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-28 AWG ED555/DS

Case Package:SOT-23

Datasheet:ED555/11DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED555/DS
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Gray
Number of Rows	1
Additional Feature	STANDARD: UL 94V-0, PA66
Pitch	0.138 3.50mm
Lead Pitch	3.5mm
Housing Color	Grey
Wire Gauge	16-28 AWG
Voltage	150V
Plating	Steel
Number of Levels	1
Current	6A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	11
Safety Approval	CUL; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Number of Positions Per Level	11
Height	8.2mm
Length	38.5mm
Width	6.2mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED555/11DS Product Details

ED555/11DS Overview

This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the ED555/DS Series.To name a few, there is also STANDARD: UL 94V-0, PA66.Part Through Hole is mounted to the part.As a result, the device runs at -30°C~105°C Operating Temperature.
