Name: ED600/2DS
Brand: On Shore Technology Inc.
SKU: ED600/2DS
Price: 1.11000 USD
Availability: InStock

new-10%

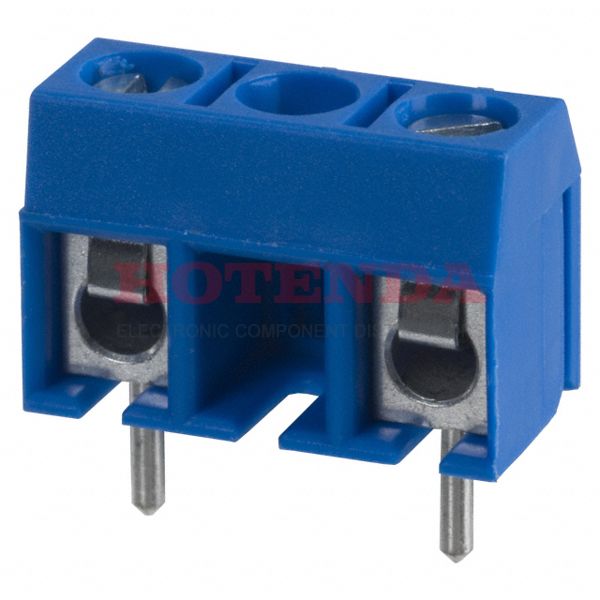

ED600/2DS

Manufacturer part number:ED600/2DS

Manufacturer:On Shore Technology Inc.

Description:0.394 10.00mm Blue Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED600/DS

Case Package:SOT-23

Datasheet:ED600/2DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	2
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED600/DS
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Blue
Number of Rows	1
Pitch	0.394 10.00mm
Lead Pitch	10mm
Housing Color	Blue
Wire Gauge	14-22 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Positions Per Level	2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2.6
Number of Positions Per Level	2
Height	10mm
Length	15mm
Width	7.5mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED600/2DS Product Details

ED600/2DS Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ED600/DS Series.There are 2 pins on the device.If the temperature is below 105°C, it's best to use it.-30°C is the minimum temperature for this device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.
