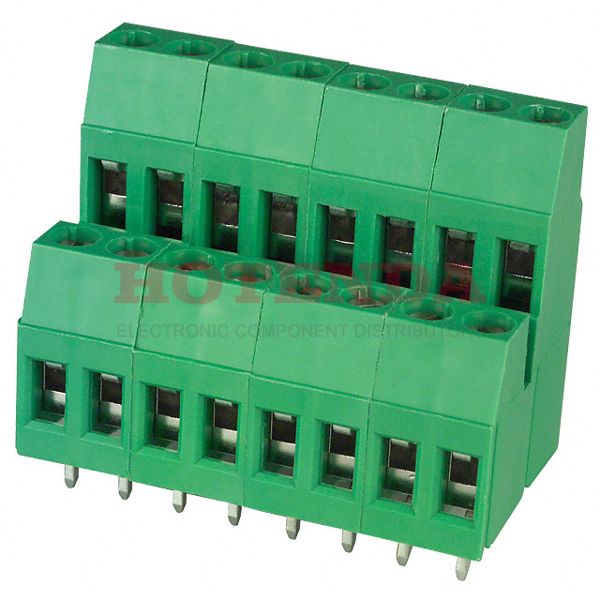

Name: ED790/8
Brand: On Shore Technology Inc.
SKU: ED790/8
Price: 10.19000 USD
Availability: InStock

new

ED790/8

Manufacturer part number:ED790/8

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG ED790

Case Package:SOT-23

Datasheet:ED790/8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	8
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED790
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	8
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	2
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
Plating	Copper
Number of Levels	2
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	8
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	8
Height	31.4mm
Length	40.6mm
Width	21.7mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED790/8 Product Details

ED790/8 Overview

A Through Hole mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the ED790 Series.It has 8 pins on the back of the device.You should use it at a temperature below 105°C.Temperatures below -30°C are required for operation of this device.By Through Hole it's mounted.In this case, the device runs at -30°C~105°C Operating Temperature.
