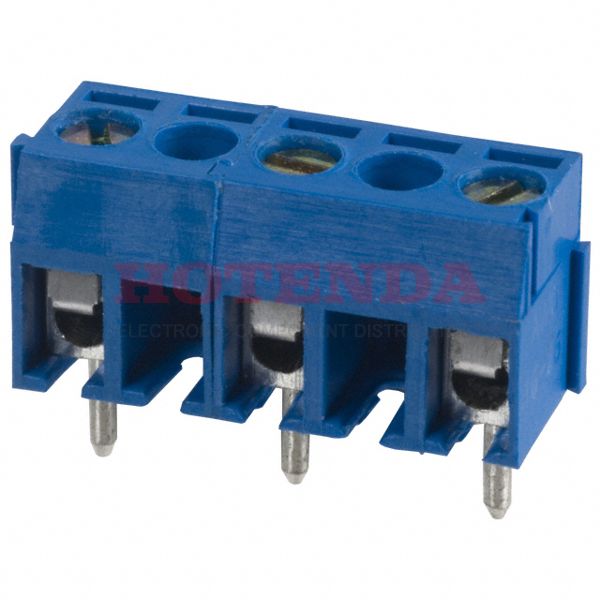

Name: OSTTE031161
Brand: On Shore Technology Inc.
SKU: OSTTE031161
Price: 0.49000 USD
Availability: InStock

new-10%

OSTTE031161

Manufacturer part number:OSTTE031161

Manufacturer:On Shore Technology Inc.

Description:0.276 7.00mm Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 16-26 AWG OSTTE

Case Package:SOT-23

Datasheet:OSTTE031161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	3
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Operating Temperature	-33°C~120°C
Packaging	Bulk
Series	OSTTE
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	3
Max Operating Temperature	120°C
Min Operating Temperature	-33°C
Number of Rows	1
Pitch	0.276 7.00mm
Wire Gauge	16-26 AWG
Voltage	125V
Plating	Chromate, Galvanized, Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Torque - Screw	0.15 Nm (1.3 Lb-In)
Positions Per Level	3
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M2
Number of Positions Per Level	3
Height	8.4mm
Length	17.5mm
Width	7mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTE031161 Product Details

OSTTE031161 Overview

The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the OSTTE Series, it belongs to the range of products of that series.3 pins are on the device.A temperature below 120°C is best for using it.The device must run at -33°C degrees.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.-33°C~120°C Operating Temperature is the default operating temperature for the device.
