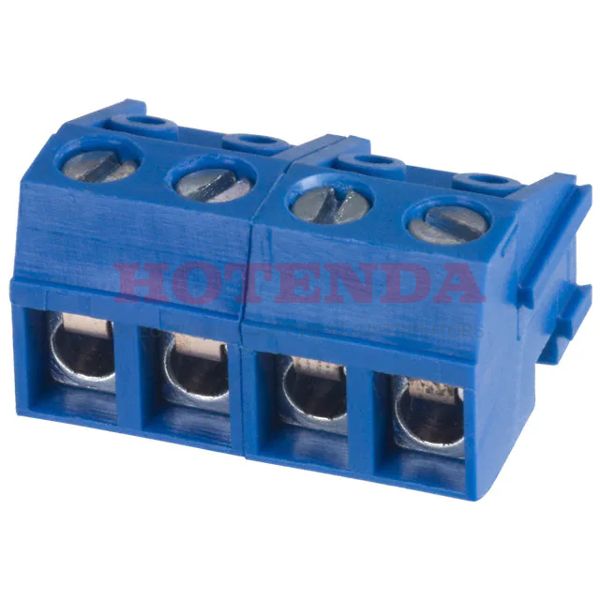

Name: OSTTH040160
Brand: On Shore Technology Inc.
SKU: OSTTH040160
Price: 1.45000 USD
Availability: InStock

new-10%

OSTTH040160

Manufacturer part number:OSTTH040160

Manufacturer:On Shore Technology Inc.

Description:OSTTH040160 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from On Shore Technology Inc. stock available on our website

Case Package:SOT-23

Datasheet:OSTTH040160 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	OSTTH
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug for Unshrouded Header
Number of Positions	4
Color	Blue
Number of Rows	1
Pitch	0.197 5.00mm
Termination Style	Screw
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Nickel
Number of Decks	1
Wire Gauge or Range - AWG	14-22 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	4
Safety Approval	CSA; TUV; UL; VDE
Wire Gauge or Range - mm²	0.34-1.5mm2
Wire Strip Length	5-6mm
Height	11mm
Length	20mm
Width	13.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

OSTTH040160 Product Details

OSTTH040160 Overview

There is a mounting type of Free Hanging (In-Line) for this device.Packaging for the product is carried out via a Bulk case.Among the products in the OSTTH Series, it is one of the most popular.A number of features make the Interlocking (Side) feature more powerful.Free Hanging is mounting the part.The device runs in -40°C~115°C Operating Temperature.It shares many benefts with other Plug for Unshrouded Header products.
