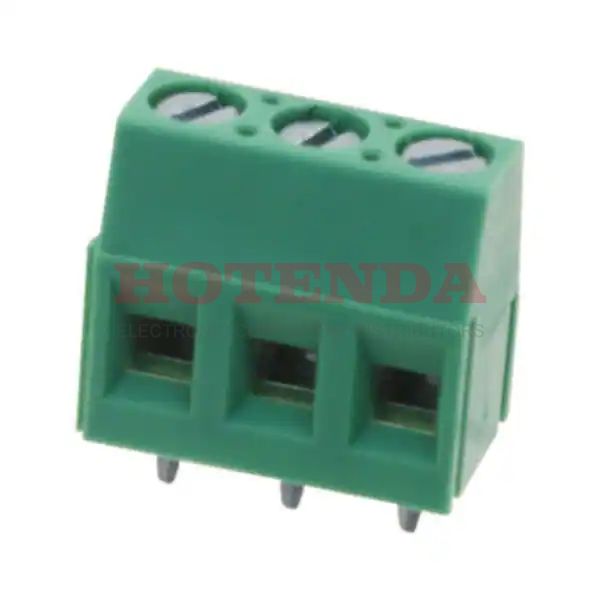

Name: OSTVI032152
Brand: On Shore Technology Inc.
SKU: OSTVI032152
Price: 1.47000 USD
Availability: InStock

new-10%

OSTVI032152

Manufacturer part number:OSTVI032152

Manufacturer:On Shore Technology Inc.

Description:0.200 5.08mm Green Bulk Thermoplastic Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-28 AWG OSTVI

Case Package:SOT-23

Datasheet:OSTVI032152 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Brass
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTVI
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Green
Number of Rows	1
Pitch	0.200 5.08mm
Wire Gauge	12-28 AWG
Voltage	300V
Plating	Brass, Steel
Number of Levels	1
Current	16A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4 Nm (3.5 Lb-In)
Positions Per Level	3
Number of Ways	3
Safety Approval	CUL; FIMKO; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
RoHS Status	ROHS3 Compliant

OSTVI032152 Product Details

OSTVI032152 Overview

The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the OSTVI Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.-30°C~105°C Operating Temperature is the default operating temperature for the device.
