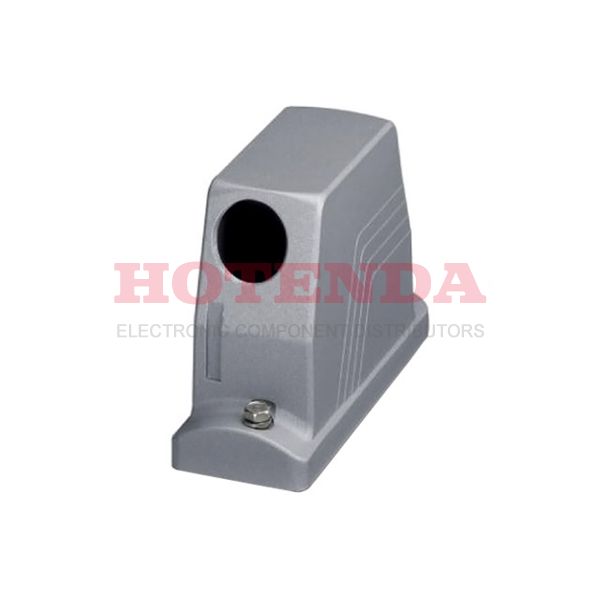

Name: 1690228
Brand: Phoenix Contact
SKU: 1690228
Availability: InStock

new-10%

1690228

Manufacturer part number:1690228

Manufacturer:Phoenix Contact

Description:1690228 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1690228 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Cable
Package / Case	100
Housing Material	Aluminum, Die Cast
Operating Temperature	-40°C~125°C
Packaging	Bulk
Published	2011
Series	HEAVYCON-ADVANCE® EMV
Size / Dimension	4.961Lx2.244W x 3.937 H 126.00mmx57.00mmx100.00mm
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Hood
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Ingress Protection	IP65/68/69K - Dust Tight, Water Resistant, Waterproof
Style	Side Entry
Housing Color	Silver
Size	B16
Thread Size	M32
Lock Location	Screw Locks on Hood
Housing Finish	EMC Coating
Height	100.076mm
Length	126.0094mm
Width	56.9976mm
RoHS Status	RoHS Compliant
Ratings	Dust Tight, IP65, Water Resistant, Waterproof

1690228 Product Details

1690228 Overview

Currently, it is packaged in Hood.A Bulk case is used to package the product.HEAVYCON-ADVANCE? EMV Series product.A temperature below 125°C is best for using it.Temperatures below -40°C are required for this device.Packaged with the 100, there is a device enclosed.Part Cable is mounted to the part.In this case, the device operates at -40°C~125°C Operating Temperature.
