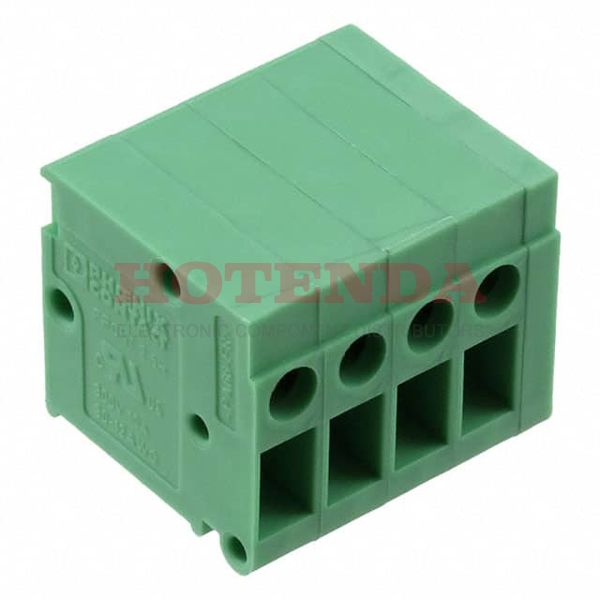

Name: 1700781
Brand: Phoenix Contact
SKU: 1700781
Price: 11.33000 USD
Availability: InStock

new

1700781

Manufacturer part number:1700781

Manufacturer:Phoenix Contact

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON FRONT

Case Package:SOT-23

Datasheet:1700781 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Contact Material - Plating	Tin Plated
Packaging	Bulk
Series	COMBICON FRONT
Published	2011
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Number of Positions	4
Color	Green
Voltage - Rated	400V
Pitch	0.197 5.00mm
Current Rating	24A
Wire Gauge	12-30 AWG
Voltage	300V
Number of Levels	1
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2.5
RoHS Status	RoHS Compliant

1700781 Product Details

1700781 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON FRONT Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
