Name: 1703084
Brand: Phoenix Contact
SKU: 1703084
Price: 0.91000 USD
Availability: InStock

new-10%

1703084

Manufacturer part number:1703084

Manufacturer:Phoenix Contact

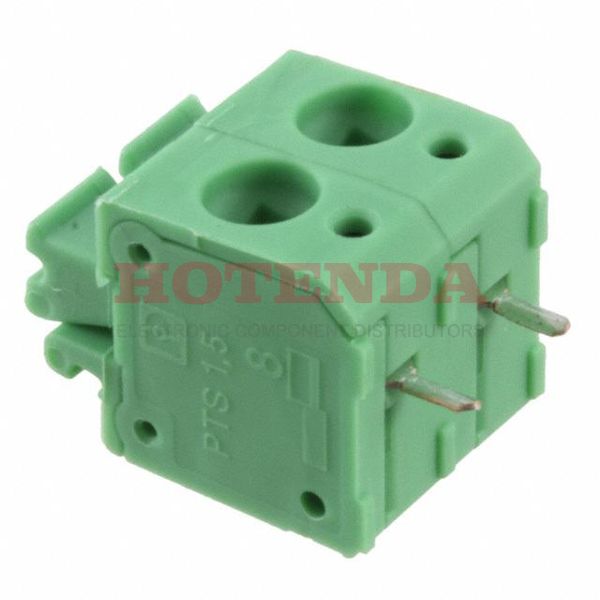

Description:0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 14-26 AWG COMBICON PTS

Case Package:SOT-23

Datasheet:1703084 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON PTS
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Number of Positions	3
Color	Green
Voltage - Rated	300V
Pitch	0.295 7.50mm
Orientation	Straight
Depth	10.5mm
Reach Compliance Code	unknown
Current Rating	12A
Approval Agency	CB, VDE, cULus
Wire Gauge	14-26 AWG
Max Supply Voltage	630V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	26 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - Push Button Clamp
Stripping Length	8mm
Height	13.6mm
Length	20mm
Width	10.5mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

1703084 Product Details

1703084 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON PTS Series.It is mounted by Through Hole.This chip should not be operated above 630V volts.
