Name: 282836-1
Brand: TE Connectivity AMP Connectors
SKU: 282836-1
Price: 1.23000 USD
Availability: InStock

new-10%

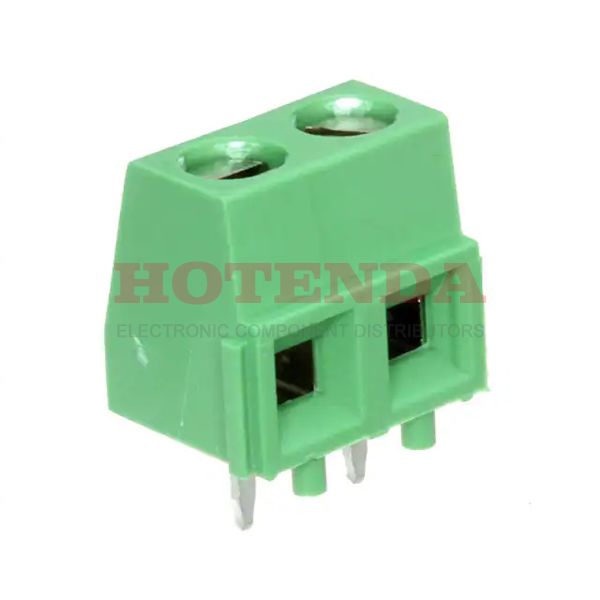

282836-1

Manufacturer part number:282836-1

Manufacturer:TE Connectivity AMP Connectors

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282836-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2011
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	8.2mm
Current Rating	13.5A
Number of Contacts	2
Wire Gauge	16-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	13.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.68 Nm (6 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	10.6mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282836-1 Product Details

282836-1 Overview

Receptacle packaging is included.This device has a mounting type of Through Hole.We package the product with a Bulk case.The product is part of the Buchanan Series.This feature makes it more powerful in a number of ways due to its Interlocking (Side) feature.You've got Through Hole mounted on the part.
