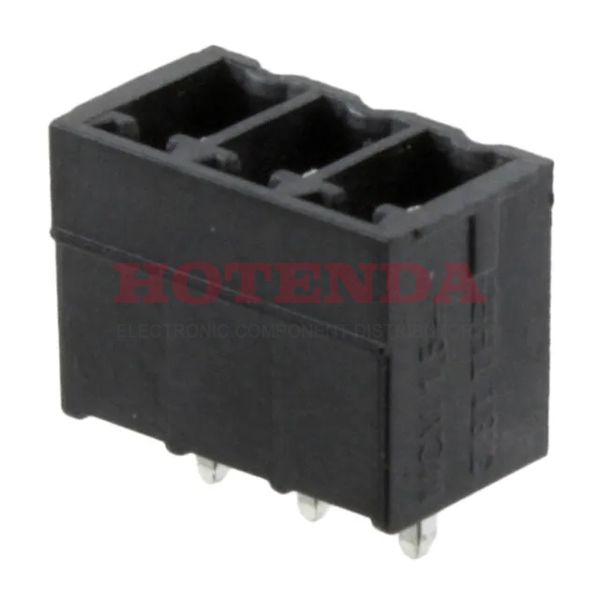

Name: 1707434
Brand: Phoenix Contact
SKU: 1707434
Price: 1.69000 USD
Availability: InStock

new-10%

1707434

Manufacturer part number:1707434

Manufacturer:Phoenix Contact

Description:1707434 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1707434 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Weight	978.001849mg
Packaging	Bulk
Published	2011
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, LCP
Pitch	0.150 3.81mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.102 2.60mm
Number of Levels	1
Current	8A
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	250V
Number of Ways	3
Safety Approval	CB; CUL; EAC; IEC; VDE; UL
Header Orientation	Vertical
Number of Positions Per Level	3
Fastening Method	CONNECTOR
Height	11.8mm
Length	7.25mm
Width	12.82mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1707434 Product Details

1707434 Overview

This product is packaged in a Plug box.This device has a mounting type of Through Hole.Packaging the product involves using a Bulk case.This is from the COMBICON MCV Series.Then there's STANDARD: UL 94V-0, LCP, for example.Through Hole is used to mount the part.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
