Name: 1708055
Brand: Phoenix Contact
SKU: 1708055
Price: 10.45000 USD
Availability: InStock

new

1708055

Manufacturer part number:1708055

Manufacturer:Phoenix Contact

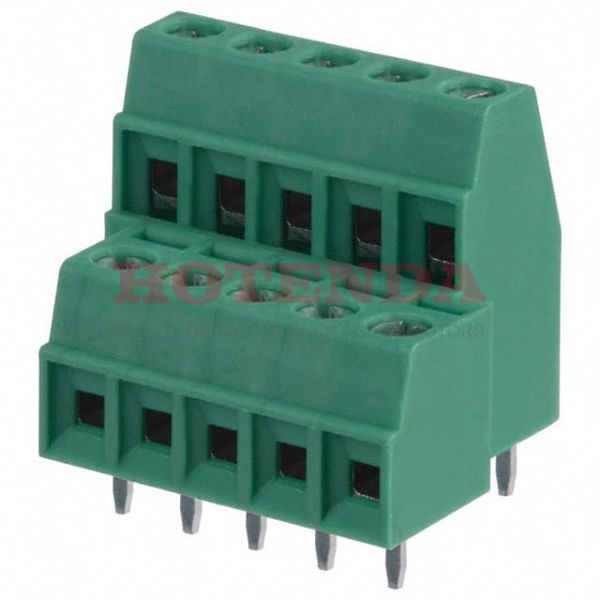

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 16-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1708055 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	2.267962kg
Packaging	Bulk
Series	COMBICON MKKDS
Published	2010
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Number of Positions	5
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	200V
Additional Feature	PA, 94V-0
Pitch	0.150 3.81mm
Orientation	Straight
Depth	16.3mm
Current Rating	8A
Approval Agency	CB, CSA, UL, cULus
Number of Contacts	10
Wire Gauge	16-30 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	10A
Number of Levels	2
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Positions Per Level	5
Number of Ways	5
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Stripping Length	5mm
Height	16.2mm
Length	21mm
Width	16.3mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1708055 Product Details

1708055 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MKKDS Series.Other features include PA, 94V-0, to name just a few.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
