1709456

1709456

1709456

Phoenix Contact

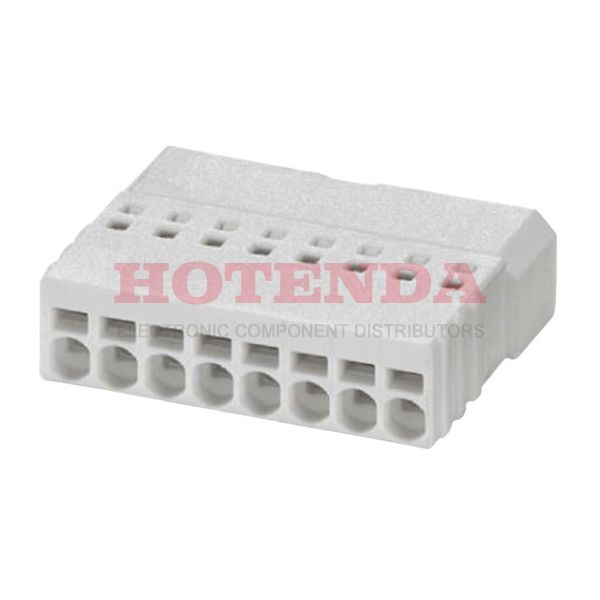

1709456 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1709456 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
PackagingBulk
Published 2016
Series COMBICON PTSM
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screwless
ECCN Code EAR99
Type Plug, Male Pins
Number of Positions 8
Color White
Pitch 0.098 2.50mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-0.5mm2
Current - IEC 6A
RoHS StatusRoHS Compliant
In-Stock:2403 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.853883$2.853883
10$2.692342$26.92342
100$2.539946$253.9946
500$2.396175$1198.0875
1000$2.260542$2260.542

1709456 Product Details

1709456 Overview


Mounting type Free Hanging (In-Line) is selected for the device.The product is packaged in a Bulk case.This is from the COMBICON PTSM Series.You've got Free Hanging mounted on the part.As with other Plug, Male Pins products, this part also offers a wide range of benefits.

1709456 Features


COMBICON PTSM series

1709456 Applications


There are a lot of Phoenix Contact 1709456 Terminal Blocks applications.

  • Anywhere power is distributed
  • Transportation
  • Data Technology
  • Communication
  • LED municipal outdoor and street lighting
  • Blowers
  • Industrial Automation
  • Control panels
  • All Electrical Machinery
  • Datacom
