Name: 1710072
Brand: Phoenix Contact
SKU: 1710072
Price: 1.87000 USD
Availability: InStock

new-10%

1710072

Manufacturer part number:1710072

Manufacturer:Phoenix Contact

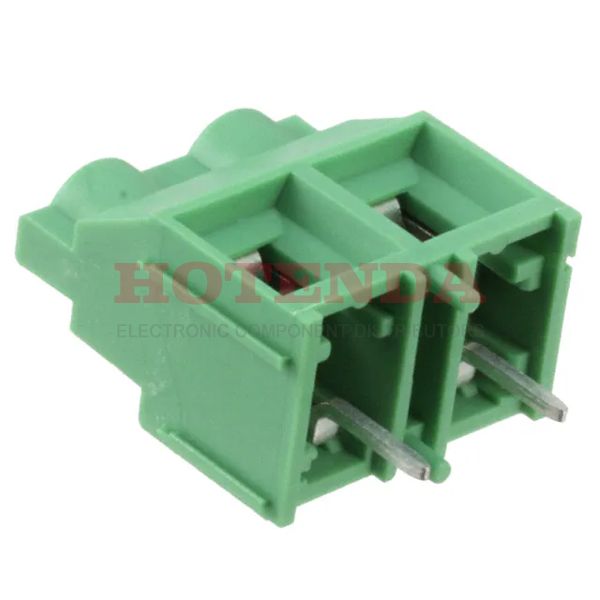

Description:0.375 9.53mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 10-30 AWG COMBICON MKDSV

Case Package:SOT-23

Datasheet:1710072 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	6.493005g
Packaging	Bulk
Series	COMBICON MKDSV
Published	2012
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Number of Positions	2
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	1kV
HTS Code	8536.69.40.40
Pitch	0.375 9.53mm
Orientation	Straight
Depth	21.5mm
Reach Compliance Code	not_compliant
Current Rating	32A
Approval Agency	cULus
Wire Gauge	10-30 AWG
Voltage	600V
Number of Levels	1
Current	30A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5 Nm (4.4 Lb-In)
Number of Ways	2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	8mm
Height	19.04mm
Length	19.04mm
Width	12.5mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1710072 Product Details

1710072 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MKDSV Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
