Name: 1876460000
Brand: Weidmüller
SKU: 1876460000
Price: 1.72000 USD
Availability: InStock

new-10%

1876460000

Manufacturer part number:1876460000

Manufacturer:Weidmüller

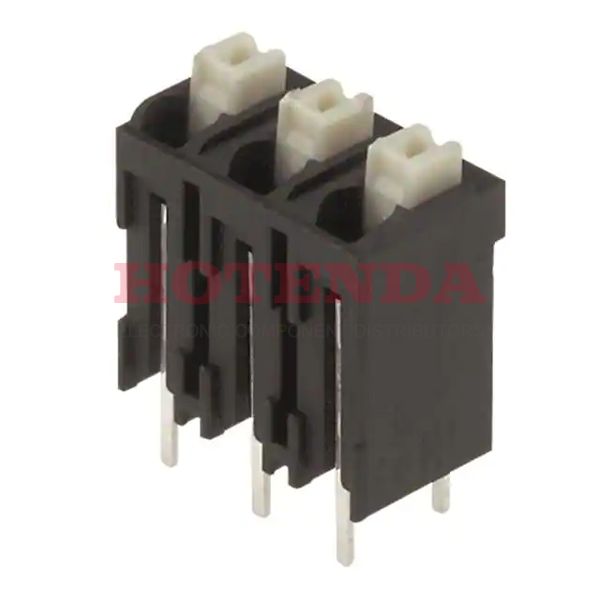

Description:0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP), Glass Filled Through Hole Vertical with Board Screwless - Push Button Clamp 1 Levels 16-24 AWG Omnimate LSF-SMT

Case Package:SOT-23

Datasheet:1876460000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~240°C
Packaging	Tape & Reel (TR)
Series	Omnimate LSF-SMT
Published	2004
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	GLASS FILLED LCP, 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	14.3mm
Current Rating	10A
Approval Agency	CSA, cURus
Wire Gauge	16-24 AWG
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Number of Ways	3
Safety Approval	UL; VDE; CSA
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Push Button Clamp
Hole Diameter	1.1 mm
Number of Positions Per Level	3
Stripping Length	8mm
Fastening Method	PUSH-ON
Length	14.36mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1876460000 Product Details

1876460000 Overview

Through Hole is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Omnimate LSF-SMT Series.Among other features are GLASS FILLED LCP, 94V-0, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -50°C~240°C.This chip should not be operated above 300V volts.
