Name: 1719028
Brand: Phoenix Contact
SKU: 1719028
Price: 9.97000 USD
Availability: InStock

new

1719028

Manufacturer part number:1719028

Manufacturer:Phoenix Contact

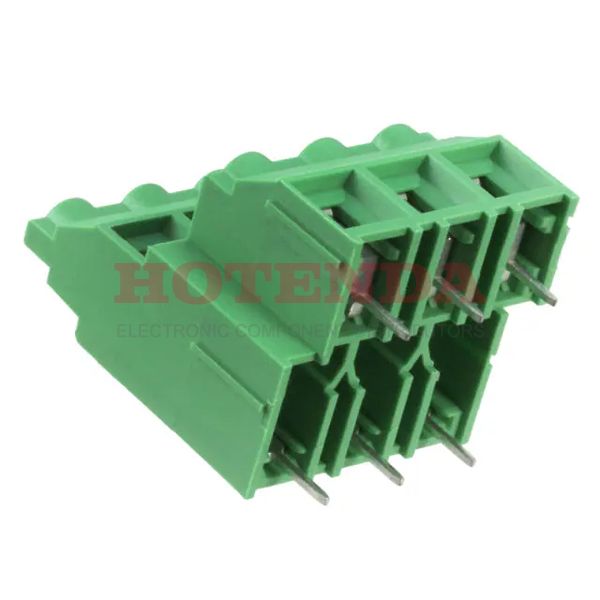

Description:0.375 9.53mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 10-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1719028 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	6
Housing Material	Polyamide (PA), Nylon
Weight	649.997866g
Packaging	Bulk
Series	COMBICON MKKDS
Published	2003
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	690V
Additional Feature	PA, 94V-0
Pitch	0.375 9.53mm
Orientation	Straight
Depth	28mm
Current Rating	32A
Wire Gauge	10-30 AWG
Voltage	600V
Max Supply Voltage	690V
Max Current Rating	32A
Number of Levels	2
Current	30A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Height	33.32mm
Length	28.56mm
Width	44.1mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1719028 Product Details

1719028 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MKKDS Series.There are 6 pins on the device.Other features include PA, 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
