Name: 1725041
Brand: Phoenix Contact
SKU: 1725041
Price: 5.03000 USD
Availability: InStock

new-10%

1725041

Manufacturer part number:1725041

Manufacturer:Phoenix Contact

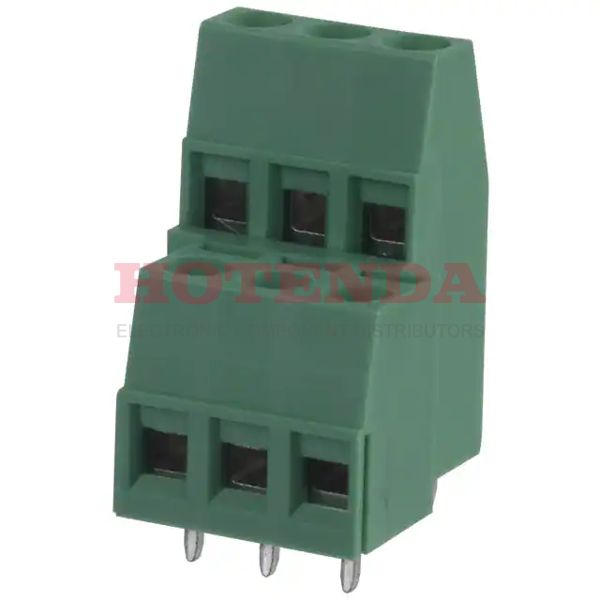

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 14-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1725041 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	6
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	10.680002g
Packaging	Bulk
Series	COMBICON MKKDS
Published	2001
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	21.4mm
Current Rating	17.5A
Voltage - Rated AC	250V
Approval Agency	CSA, UL
Lead Pitch	5.08mm
Wire Gauge	14-30 AWG
Voltage	300V
ELV	Compliant
Max Supply Voltage	250V
Max Current Rating	22A
Number of Levels	2
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	30 AWG
Number of Poles	3
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	7mm
Height	21.4mm
Length	17.78mm
Width	28.7mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

1725041 Product Details

1725041 Overview

This product is packaged in a Screw box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON MKKDS Series.It is equipped with 6 pins.Furthermore, there are other features such as PA, 94V-0, to name a few.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.A supply voltage of 250V should not be exceeded by this chip.
