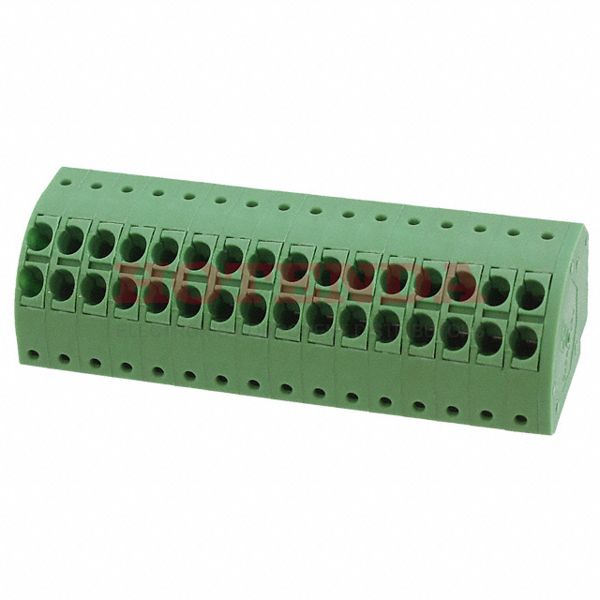

Name: 1725289
Brand: Phoenix Contact
SKU: 1725289
Price: 6.36000 USD
Availability: InStock

new-10%

1725289

Manufacturer part number:1725289

Manufacturer:Phoenix Contact

Description:1725289 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1725289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON PTDA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug for Unshrouded Header
Number of Positions	16
Color	Green
Number of Rows	2
Voltage - Rated	160V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Insulation Height	0.630 16.00mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screwless - Spring Cage, Tension Clamp
Voltage	300V
Number of Levels	1 (Mate), 2 (Input)
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	400V
Positions Per Level	16 (Mate), 32 (Input)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	45°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	10mm
Current - IEC	8A
Wire Cross Section	1.5 mm2
Fastening Method	SPRING LOADED
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1725289 Product Details

1725289 Overview

The device's mounting type is Free Hanging (In-Line).We use a Bulk case to package the product.It's from the COMBICON PTDA Series.There are also other features such as PA, UL 94V0, to name only a few.Free Hanging is used to mount the part.
