Name: 1728307
Brand: Phoenix Contact
SKU: 1728307
Price: 3.31000 USD
Availability: InStock

new-10%

1728307

Manufacturer part number:1728307

Manufacturer:Phoenix Contact

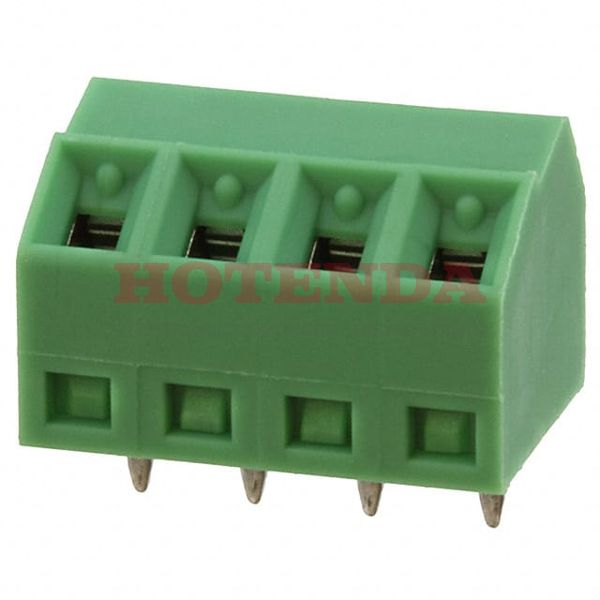

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole 55° (125°) Angle with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG COMBICON SMKDS

Case Package:SOT-23

Datasheet:1728307 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	2.390007g
Packaging	Bulk
Series	COMBICON SMKDS
Published	2003
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	200V
Pitch	0.150 3.81mm
Depth	10mm
Current Rating	10A
Number of Contacts	4
Wire Gauge	16-30 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	4
Safety Approval	UL
Mating Orientation	55° (125°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Height	13mm
Length	10mm
Width	15.23mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1728307 Product Details

1728307 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON SMKDS Series.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
