Name: 1697180000
Brand: Weidmüller
SKU: 1697180000
Price: 1.88000 USD
Availability: InStock

new-10%

1697180000

Manufacturer part number:1697180000

Manufacturer:Weidmüller

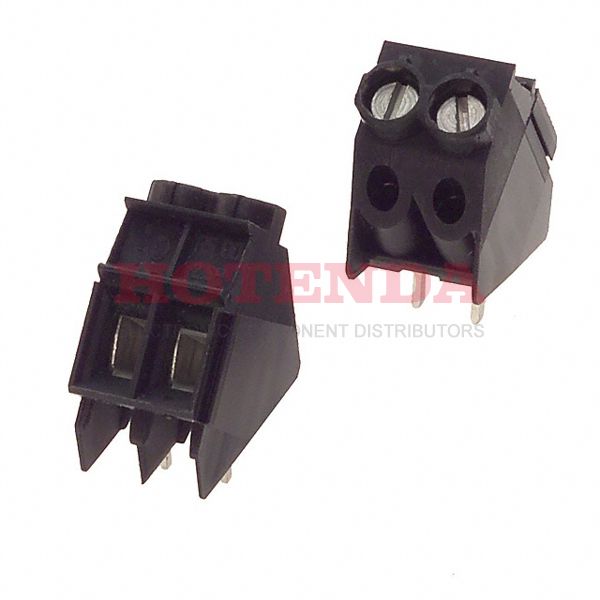

Description:0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole 45° (135°) Angle with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 12-26 AWG Omnimate LP

Case Package:SOT-23

Datasheet:1697180000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-20°C~100°C
Packaging	Bulk
Series	Omnimate LP
Published	2013
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Connector Type	PCB, Terminal Block
Color	Black
Number of Rows	1
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Current Rating	15A
Wire Gauge	12-26 AWG
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL; VDE; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M3
Number of Positions Per Level	2
Height	16.8mm
Width	17.5mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1697180000 Product Details

1697180000 Overview

The product is packaged in PCB, Terminal Block.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate LP Series.Part Through Hole is mounted to the part.As a result, the device runs at -20°C~100°C Operating Temperature.
