Name: 1730418
Brand: Phoenix Contact
SKU: 1730418
Price: 3.18000 USD
Availability: InStock

new-10%

1730418

Manufacturer part number:1730418

Manufacturer:Phoenix Contact

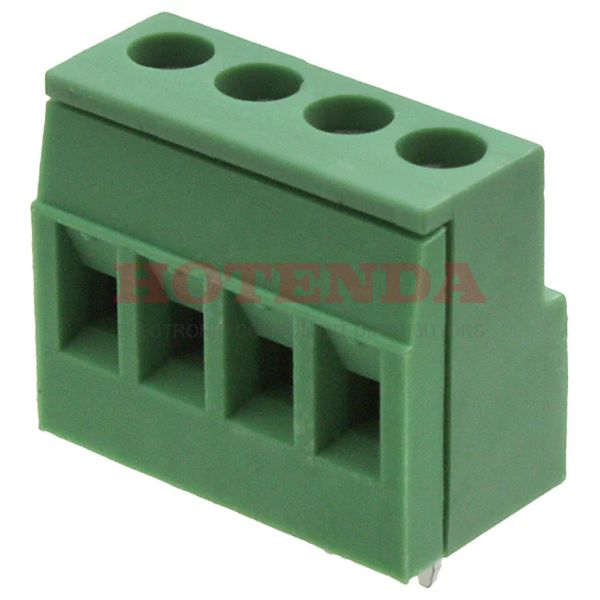

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1730418 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	8.639999g
Packaging	Bulk
Series	COMBICON MKDS
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.200 5.08mm
Current Rating	24A
Wire Gauge	12-30 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	4
Wire Cross Section	2.5 mm2
Height	21.5mm
Length	11.62mm
Width	21.7mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1730418 Product Details

1730418 Overview

The product is packaged in Screw.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON MKDS Series.Part Through Hole is mounted to the part.
