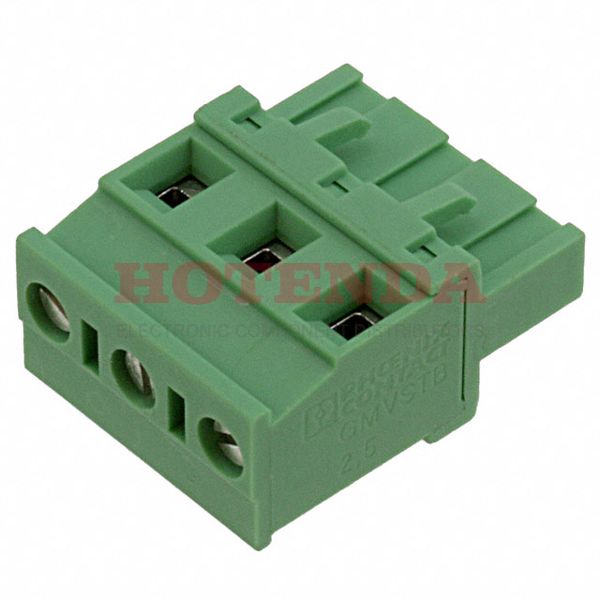

Name: 1737712
Brand: Phoenix Contact
SKU: 1737712
Price: 6.16000 USD
Availability: InStock

new-10%

1737712

Manufacturer part number:1737712

Manufacturer:Phoenix Contact

Description:1737712 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1737712 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.59982kg
Packaging	Bulk
Published	2010
Series	COMBICON GMVSTBR
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	500V
Additional Feature	PA, 94V-0
Voltage - Rated DC	500V
Pitch	0.295 7.50mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Max Supply Voltage	630V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	3
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	20.5mm
Length	20.5mm
Width	12.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1737712 Product Details

1737712 Overview

The product is packaged in Screw, Socket.It's mounted Free Hanging (In-Line).The product is packaged in a Bulk case.It belongs to the COMBICON GMVSTBR Series of products.Besides that, there's also PA, 94V-0, to name a few.This feature makes it more powerful in a number of ways due to its Retention Latches (Wire Side) feature.Free Hanging, Plug-In is used to mount the part.You should not supply this chip with more voltage than 630V.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
