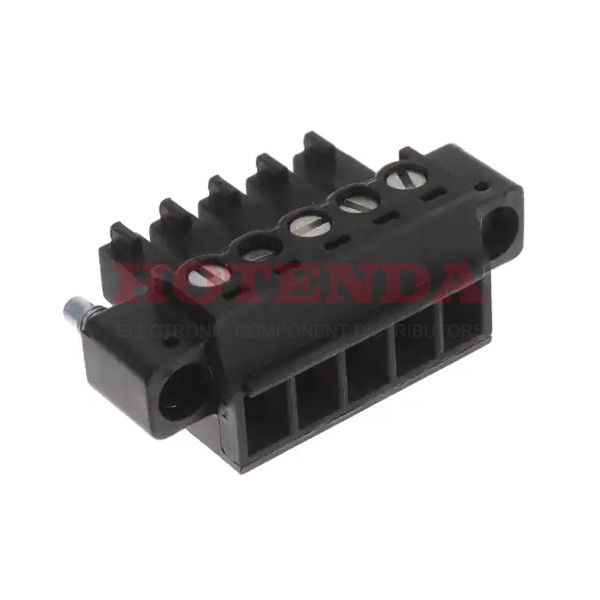

Name: 1743171
Brand: Phoenix Contact
SKU: 1743171
Price: 6.88000 USD
Availability: InStock

new-10%

1743171

Manufacturer part number:1743171

Manufacturer:Phoenix Contact

Description:1743171 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1743171 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Black
Voltage - Rated	160V
Pitch	0.150 3.81mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	160V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
RoHS Status	RoHS Compliant

1743171 Product Details

1743171 Overview

This product is packaged in a Screw box.Free Hanging (In-Line) is the mounting type of the device.A Bulk case is used to package the product.It is part of the COMBICON MC Series of products.In many ways, it is more powerful due to its Mating Flange feature.This part is mounted by Free Hanging. Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
