Name: 1744442
Brand: Phoenix Contact
SKU: 1744442
Price: 2.20000 USD
Availability: InStock

new-10%

1744442

Manufacturer part number:1744442

Manufacturer:Phoenix Contact

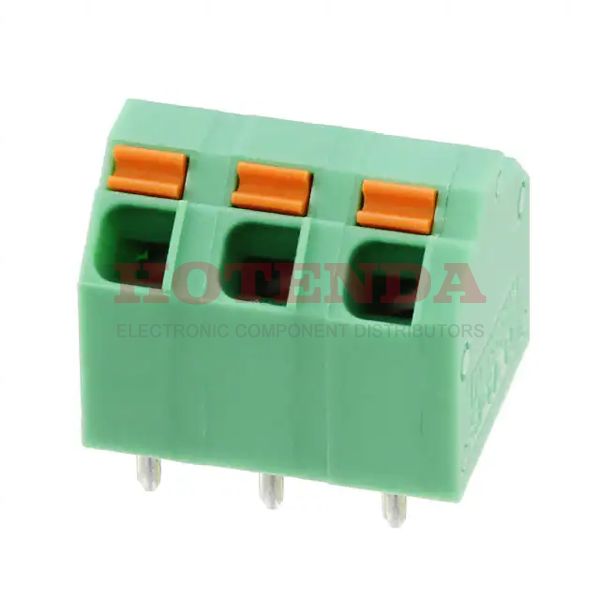

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-26 AWG COMBICON SPTA

Case Package:SOT-23

Datasheet:1744442 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON SPTA
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Number of Positions	3
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	PA, UL 94V0
Pitch	0.200 5.08mm
Reach Compliance Code	unknown
Current Rating	9A
Wire Gauge	16-26 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	3
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Fastening Method	SPRING LOADED
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1744442 Product Details

1744442 Overview

Through Hole is the mount type.Bulk cases are used to package the product.This product is in the COMBICON SPTA Series.Also, there's PA, UL 94V0, to name a few.There's a Through Hole on the part.
