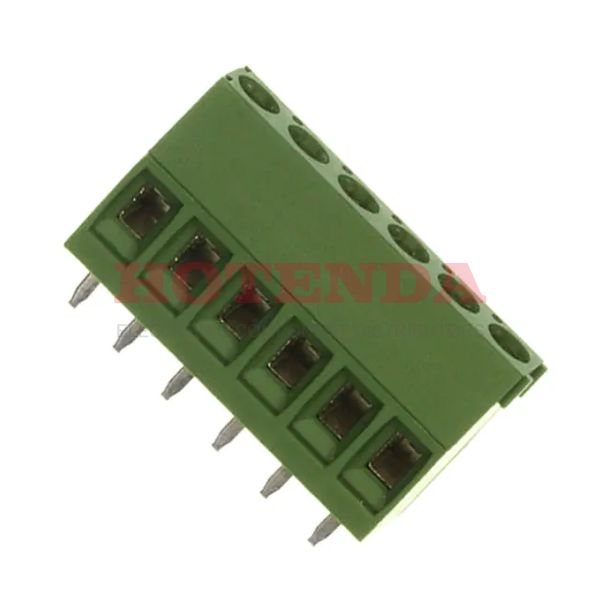

Name: 284392-6
Brand: TE Connectivity AMP Connectors
SKU: 284392-6
Price: 3.74000 USD
Availability: InStock

new-10%

284392-6

Manufacturer part number:284392-6

Manufacturer:TE Connectivity AMP Connectors

Description:0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG Buchanan

Case Package:SOT-23

Datasheet:284392-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	8.2mm
Current Rating	12A
Number of Contacts	6
Wire Gauge	14-30 AWG
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.25 Nm (2.2 Lb-In)
Number of Ways	16
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	22.86mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

284392-6 Product Details

284392-6 Overview

The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the Buchanan Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
