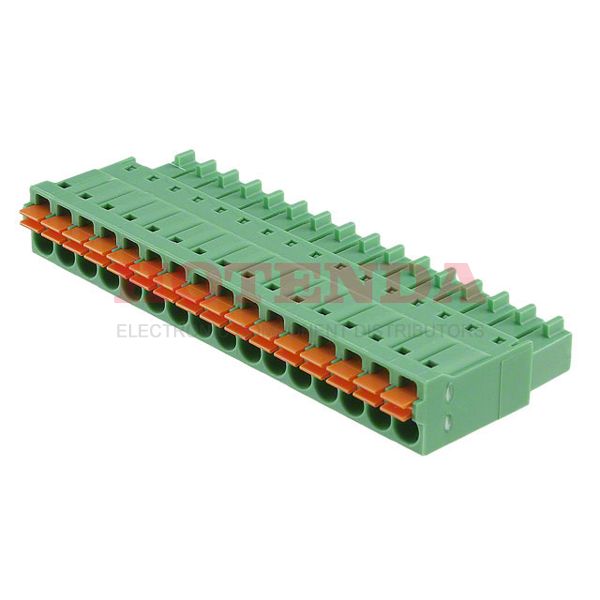

Phoenix Contact

1748118 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1748118 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 12.600002g
PackagingBulk
Published 2013
Series COMBICON FMC
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 16
Color Green
Voltage - Rated 160V
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.307 7.80mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:507 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$14.93000$14.93
10$14.52700$145.27
50$13.57660$678.83
100$12.49040$1249.04
250$11.54004$2885.01
500$10.99698$5498.49

1748118 Product Details

1748118 Overview


Free Hanging (In-Line) indicates that the device is mounted.This product is packaged in a case marked Bulk.A product of the COMBICON FMC Series, it belongs to the range of products of that series.It's mounted by Free Hanging.It shares many benefts with other Plug, Female Sockets products.

1748118 Features


COMBICON FMC series

1748118 Applications


There are a lot of Phoenix Contact 1748118 Terminal Blocks applications.

  • Datacom
  • Automotive Electronics
  • Military Technology
  • LED municipal outdoor and street lighting
  • Control panels
  • Variable speed/frequency drivers
  • Energy efficient lighting (LED)
  • Transportation
  • Communication
  • Data Technology
