Name: 1751545
Brand: Phoenix Contact
SKU: 1751545
Price: 6.20000 USD
Availability: InStock

new-10%

1751545

Manufacturer part number:1751545

Manufacturer:Phoenix Contact

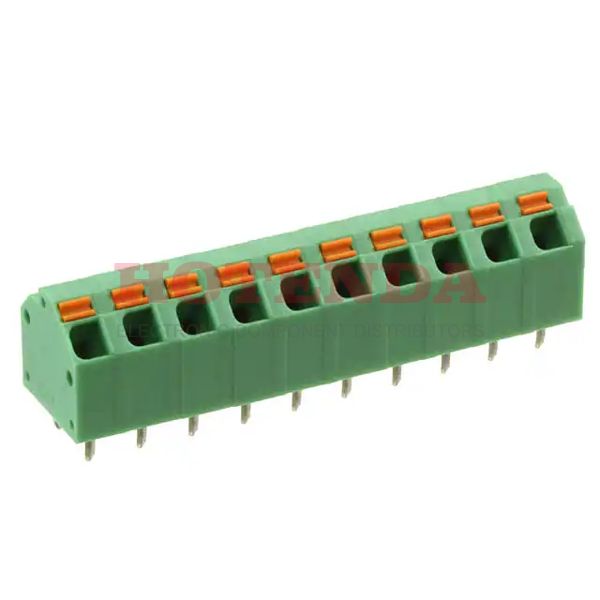

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-26 AWG COMBICON SPTA

Case Package:SOT-23

Datasheet:1751545 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	23.999998g
Packaging	Bulk
Series	COMBICON SPTA
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Number of Positions	10
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Depth	12mm
Current Rating	9A
Wire Gauge	16-26 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	9A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	10
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Fastening Method	SPRING LOADED
Height	15.4mm
Length	39.6mm
Width	39.6mm
RoHS Status	RoHS Compliant

1751545 Product Details

1751545 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON SPTA Series.Among other features are PA, UL 94V0, to name only a few.It is mounted by Through Hole.This chip should not be operated above 160V volts.
